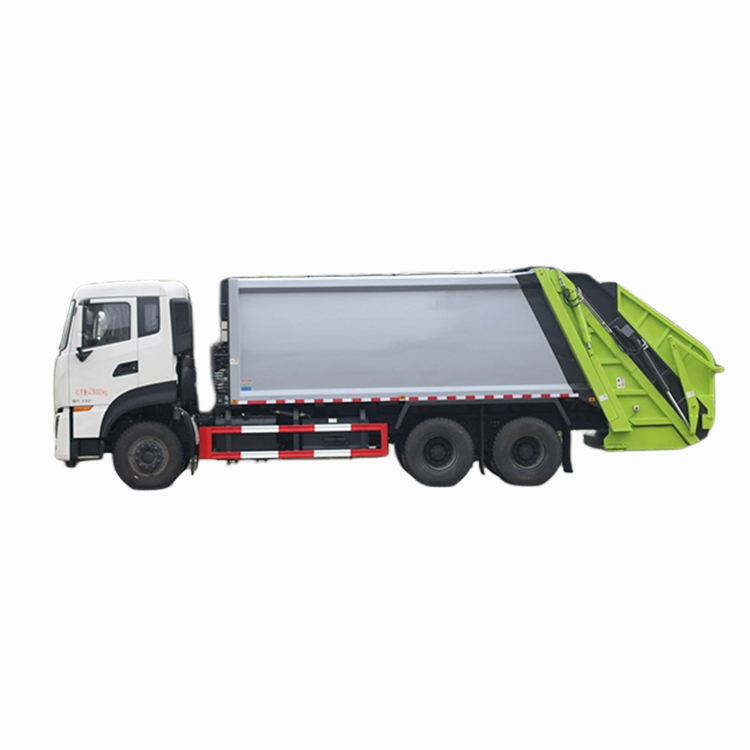

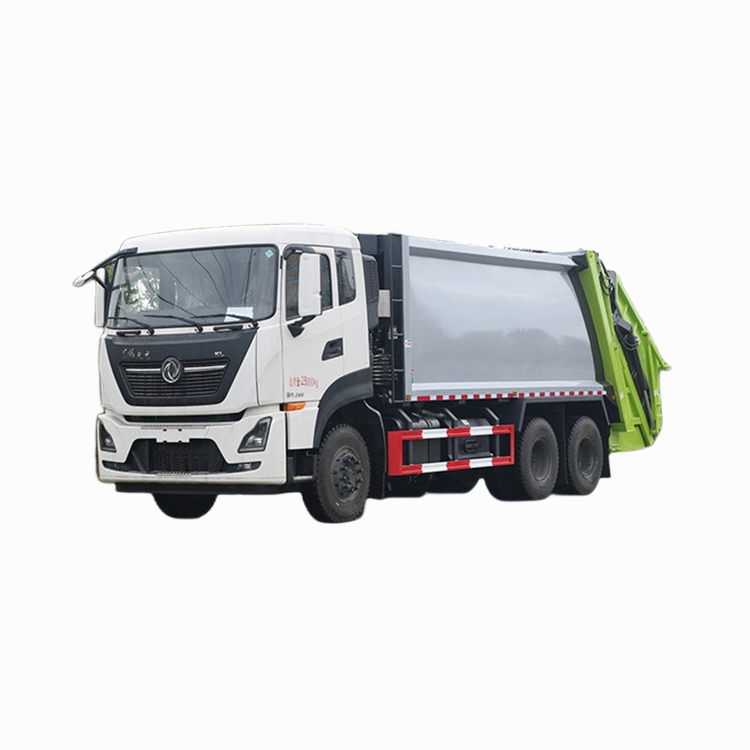

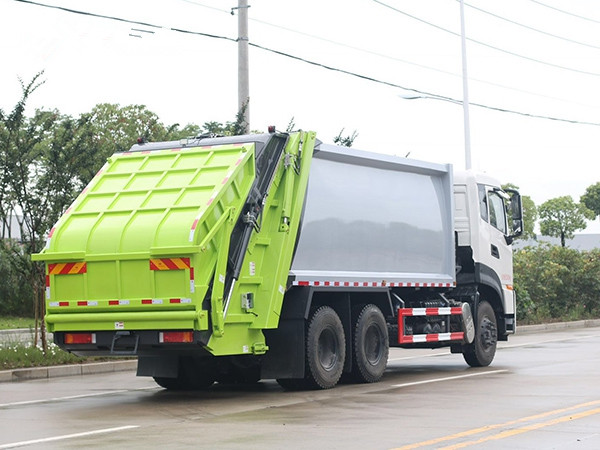

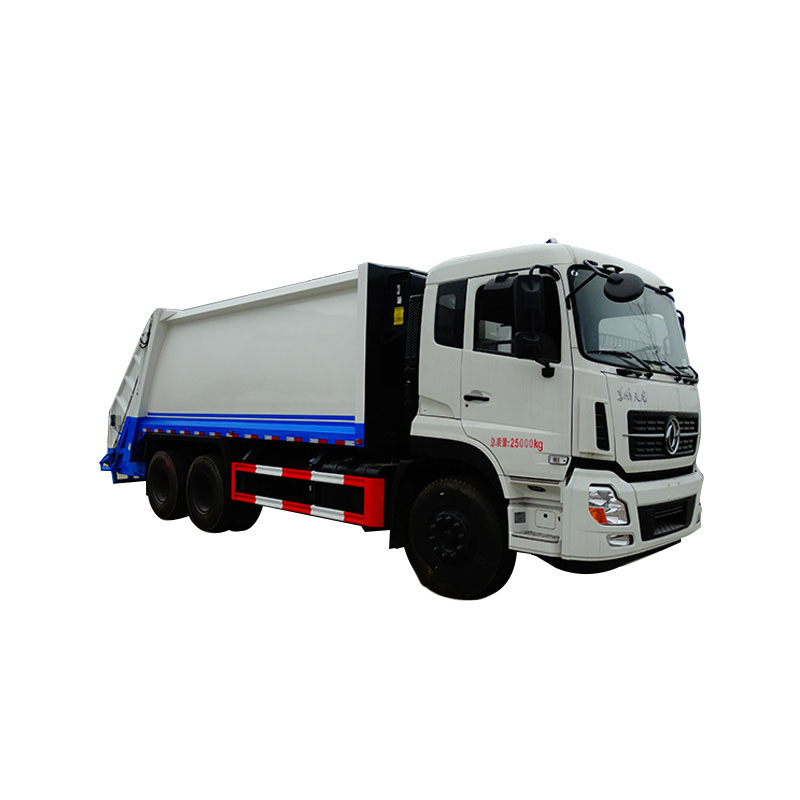

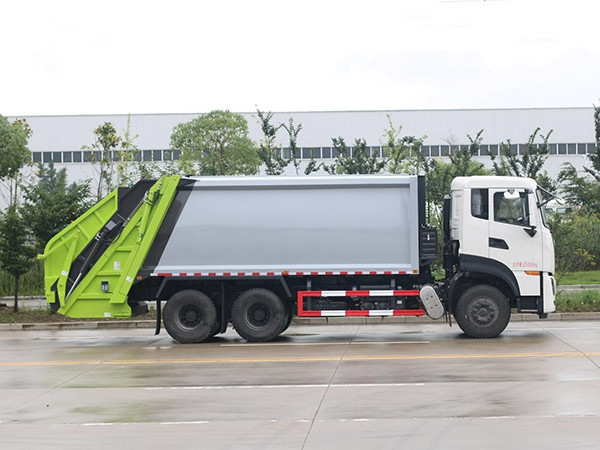

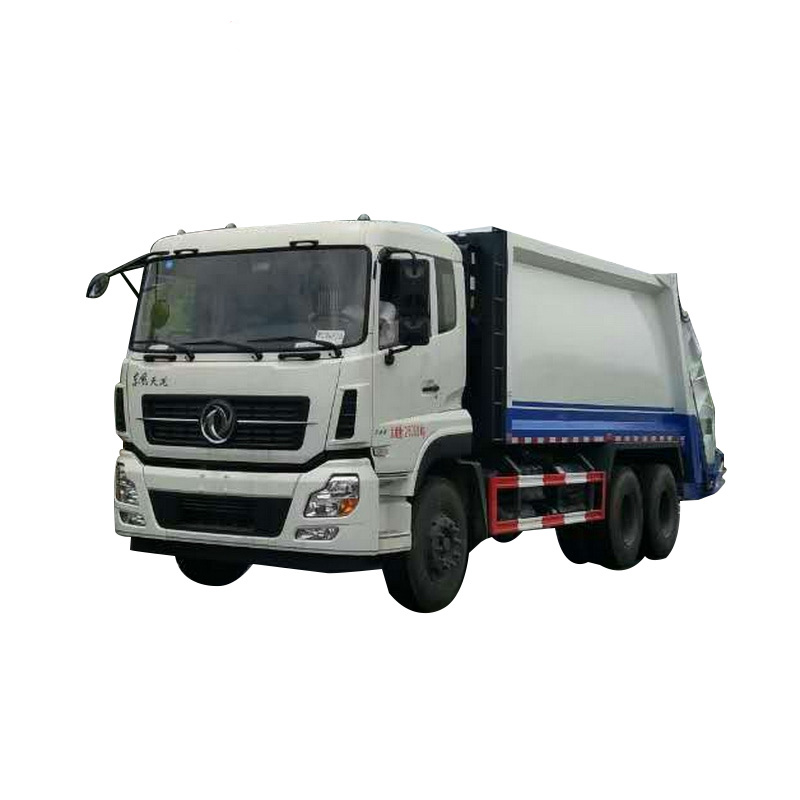

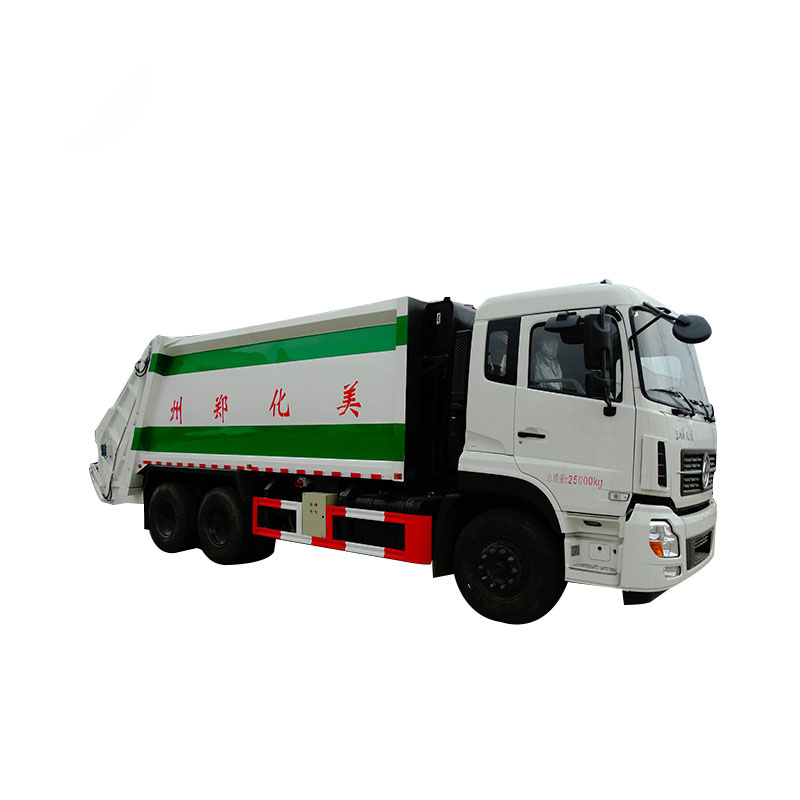

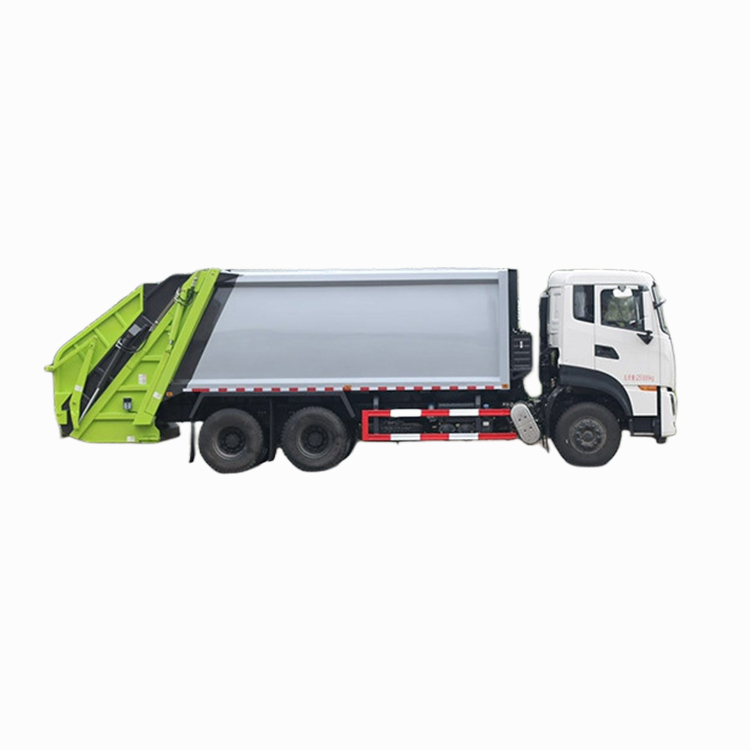

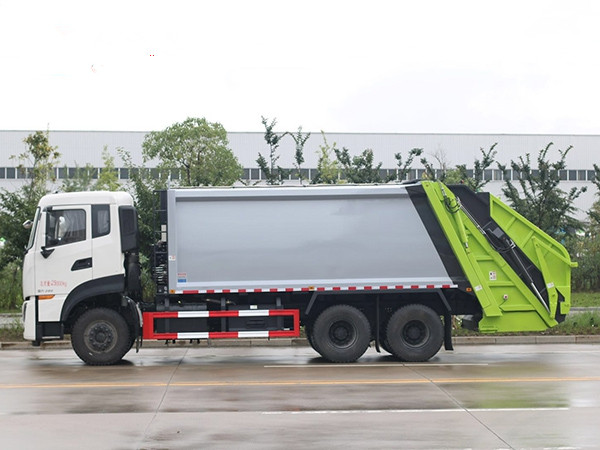

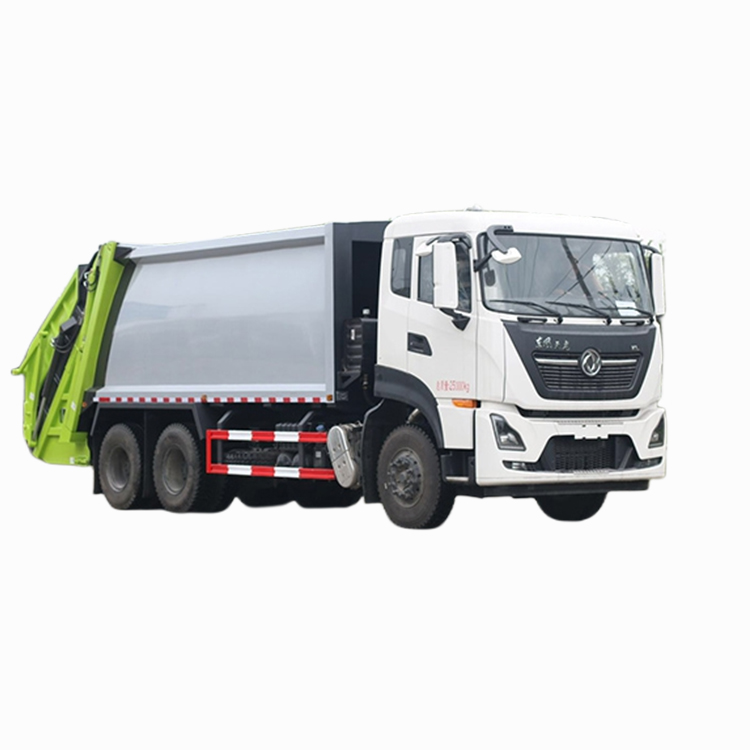

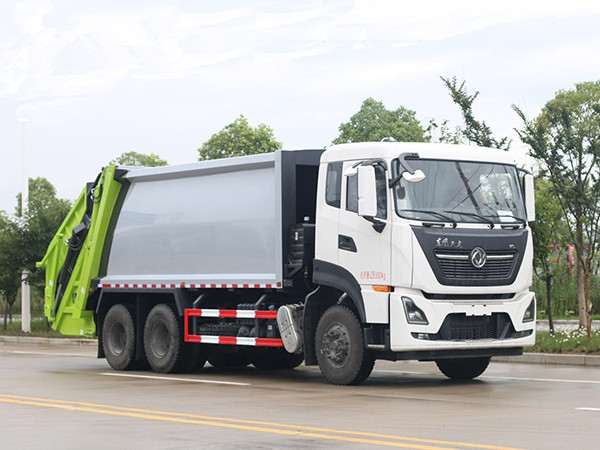

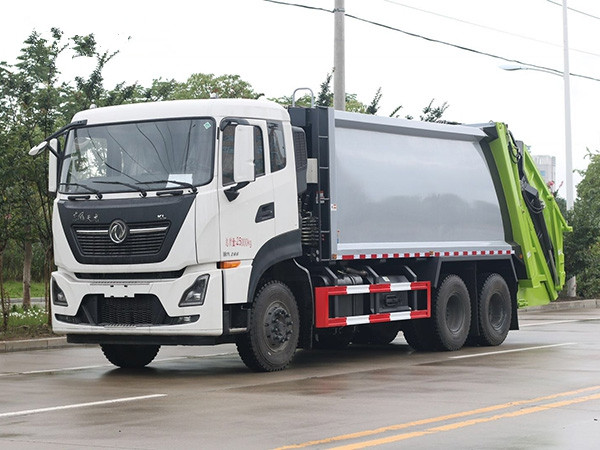

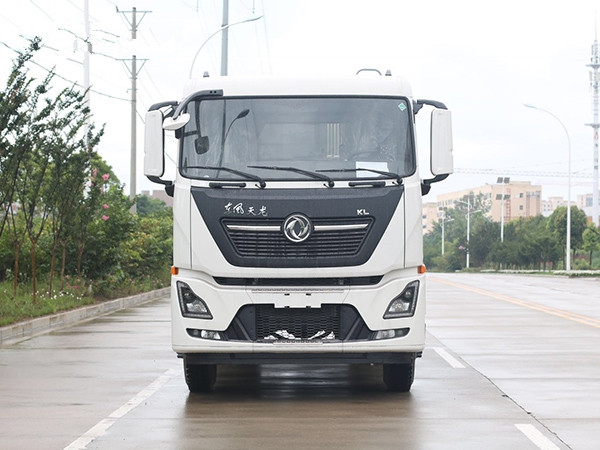

Dongfeng 6*4 20cbm waste collection garbage compactor truck

Basic Info

Model No.: YZR5251ZYSD5

Brand: XDR

Applicable Industry: Manufacturing Plant, Food &Amp; Beverage Factory, Farms, Retail, Construction Works, Energy &Amp; Mining, Other

Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: Ordinary Product

Core Component Warranty Period: 1 Year

Core Components: Engine, Gearbox, Pump

Old And New: New

Drive Form: 6x4

Types Of: Compactor

Gearbox Type: Manual

Emission Standards: Euro 3

Fuel: Diesel

Place Of Origin: China

Warranty Period: 1 Year

Emission Standard: Euro 3

Compression Ratio: ≥2.5

Product Name: Dongfeng 6*4 20cbm waste collection garbage compactor truck

Dimension: 10500×2500×3250mm

Wheelbase: 4350+1300（mm）

Tire: 11.00R20,10+1 PCS

Engine: C260 33

Tank Volume: 20CBM

Tank Material Thickness: Bottom:5mm Side:5mm

Tank Material: Carbon Steel (high quality)

Additional Info

Packaging: NAKED WITH WAX

Productivity: 1000SETS/PER YEAR

Transportation: Ocean,Land

Place of Origin: CHINA

Supply Ability: 1000SETS/PER YEAR

Certificate: ISO9001

HS Code: 8704230090

Port: SHANGHAI,TIANJIN,QINGDAO

Product Description

1. Dongfeng Compactor Garbage Truck description

A compactor garbage truck is specialized vehicle designed for efficient collection,compaction,and transportaion of waste. The truck is commonly used in residential,commercial, and industrial areas for waste management and disposal. Compactor garbage truck is essential for modern waste management systems,providing a reliable,efficient and environmentally friendly solution for waste collection and disposal.

Product Name	Compactor garbage truck
Model	YZR5251ZYSD5
Driving Type	6*4
Gross Weight	25000kg
Dimension	1050025003250mm
wheelbase	4350+1300mm
Tire	11.00R20,10+1pcs
Engine model	C260 33
Horse Power	260hp
Displacement	8300cc
Emission Standard	Euro 3
Gearbox	9+1
Garbage Tank Capacity	20cbm
Tank Shape	Arc-shaper
Tank Material thickness	Bottom:5mm Side:5mm
Tank Material	Carbon Steel (High Strength)
Compression Ratio	min 2.5
Maximum Pressure of hydraulic system	20Mpa
Control System	Simens PLC

Features of a compactor Garbage Truck

1.Loading System

Equipped with mechanisms for manual or automated loading of waste.

Common configurations include rear loaders,front loaders and side loaders,depending on the collection method.

2.Compaction Mechanism

Utilizes a hydraulic compactor to compress waste,reducing its volume.

The compaction system allows the truck to carry more waste,minimizing the number of trips required.

3.Waste collection Hopper

A designed area where waste is intially loaded.

The compactor pushes waste from the hopper into the main storage compartment

4.Storage Compartment

A large ,sealed container for holding compacted waste during transport.

5. Hydraulic System

Powers the loading,compaction, and unloading mechanisms.

Ensures smooth and efficient operation of the truck's functions.

6.Ejection System

At the disposal site, waste is unloaded using a hydraulic ejector plate or tipping mechanism.

Ensures complete emptying of the storage compartment.

7. Driver's Cabin

Features controls for the compaction and unloading systems.

Modern trucks may include advanced technologies such as cameras,sensors, and GPS for enhanced operation.

Types of Compactor Garbage Trucks:

1. Rear-loader trucks

Waste is manually or mechanically loaded from the rear of the vehicle.

Suitable for residential areas and narrow streets.

2.Front-loader trucks

Equipped with forks to lift dumpsters and empty them into the truck's top-mounted hopper.

Commonly used for commercial and industrial waste collection.

3.Side-loader trucks

Waste is collected from the side,either manually or using an automated arm.

Efficient for residential waste collection, especially with wheelie bins.

Applications

1. Residential areas: collects household waste efficiently,even in tight spaces.

2.Commercial and industrial sites: handles larger volumes of waste from businesses and factories.

3. Recycling operations: some models are designed for segregated collection of recyclable materials.

Benifits

1. Increased efficiency: compaction reduces waste volume, allowing more collection in a single trip.

2. Cost savings: Fewer trips to the landfill or disposal site save on fuel and operational costs.

3. Environmental impact: sealed compartments prevent waste leakage and reduce odors; advanced models may incorporate emission controls to minimize environmental footprint.

4.Hygiene and safety: enclosed systems limit exposure to waste, improving sanitation and reducing health risks for operators and the public.
