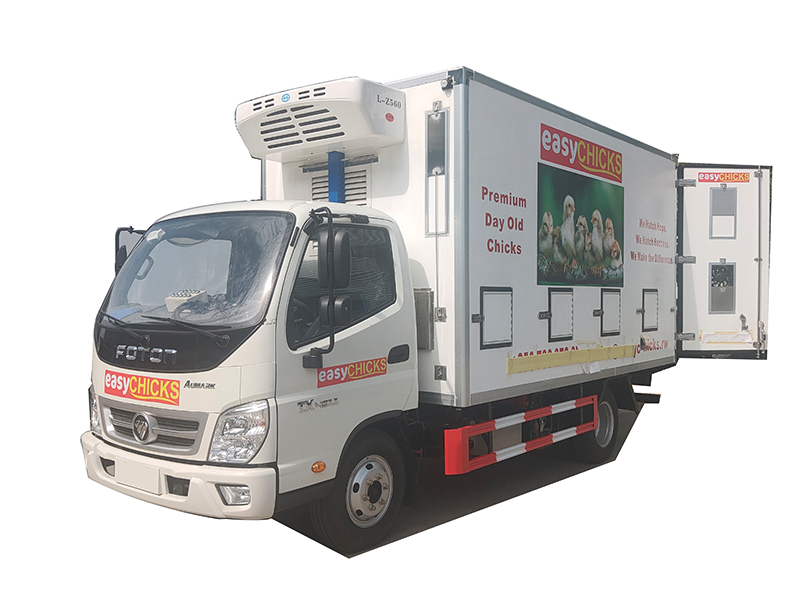

FOTON 5.5M van box animal transport purpose truck

Basic Info

Model No.: YZR5140XYSBJ3

Brand: FOTON brand

Old And New: New

Gearbox Type: Manual

Emission Standards: Euro 2, Euro 3

Fuel: Diesel

Place Of Origin: China

Additional Info

Packaging: BULK

Productivity: 1000 sets/month

Transportation: Ocean,Land

Place of Origin: HUBEI,CHINA

Supply Ability: 1000 sets/month

Certificate: ISO,CCC

HS Code: 87042240

Port: SHANGHAI,TIANJING,QINGDAO

Product Description

The FOTON brand offers a range of light-duty trucks that can be customized for various purposes, including the transportation of animals. A 5.5M (approximately 18 feet) van box truck is a common configuration for such needs. Here are some key points to consider when looking at a FOTON light-duty 5.5M van box truck for animal transport:
### Key Features:
1. **Dimensions:**
- **Length:** 5.5 meters (approx. 18 feet)
- **Width and Height:** These will vary depending on the specific model, but typically, the width is around 2-2.5 meters, and the height is around 2-2.4 meters.
2. **Payload Capacity:**
- Light-duty trucks in this class usually have a payload capacity ranging from 1.5 to 3 tons, depending on the specific model and configuration.
### Customization Options:
- **Temperature Control:** For transporting animals, especially in extreme weather conditions, a climate-controlled van box can be a valuable addition.
- **Ramps and Doors:** Easy access ramps and doors can be installed to facilitate loading and unloading of animals.
- **Water and Feeding Systems:** Some configurations may include built-in water and feeding systems to ensure the animals remain comfortable and well-fed during long journeys.
- **Monitoring Systems:** Camera systems and sensors can be installed to monitor the animals' condition during transport.

FOTON Animal Baby Transport Truck Quotation
Warranty	12 months
Payment Term	30% T/T in advance,70% before shipment
Overall Dimension	7300x2500x3050 mm
Cabin	FOTON white cabin with AC
Engine Model	Cummins brand F3.8s3141/105K/141HP/3760ml
Fuel	Diesel Euro 3
Transmission	6S558/Manual 6+1 gears
Upper Box Material	Inside and outside fiberglass steel+steel frame+floor Aluminium Alloy
Box inner Size	5000x2000x1800 mm/ship 30,000 pcs baby chicken in one time
Partition shelf	2 layer/Foldable partition,can fold if not use
Inner layout	Roof fan+side window-blinds+rear fan/revise chassis generator to 6KW,supply the power
Box inner temperature range	Box inner temperature range +25℃ to -2℃/Control the temperature by controle panel in cabin
Chiller Unit for Box	China famous brand Min temperature 0℃ to -2℃,Internal ventilation circulation Through ventilation trough
Heating System	Install the Heating system for box
