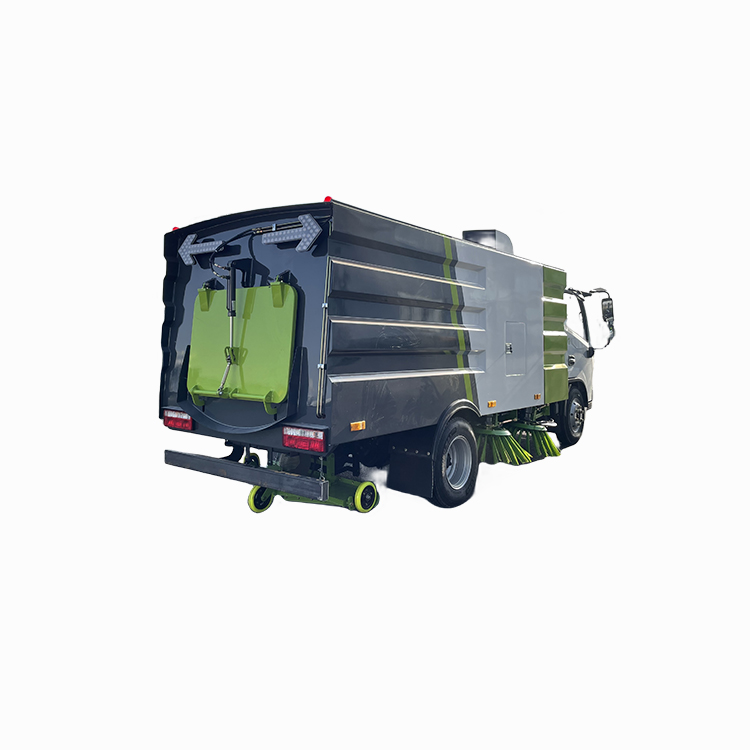

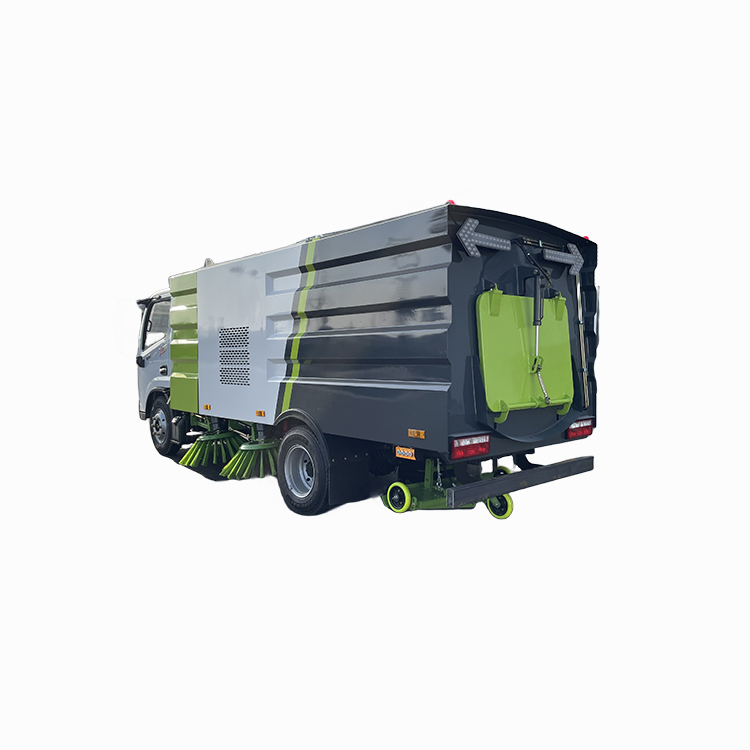

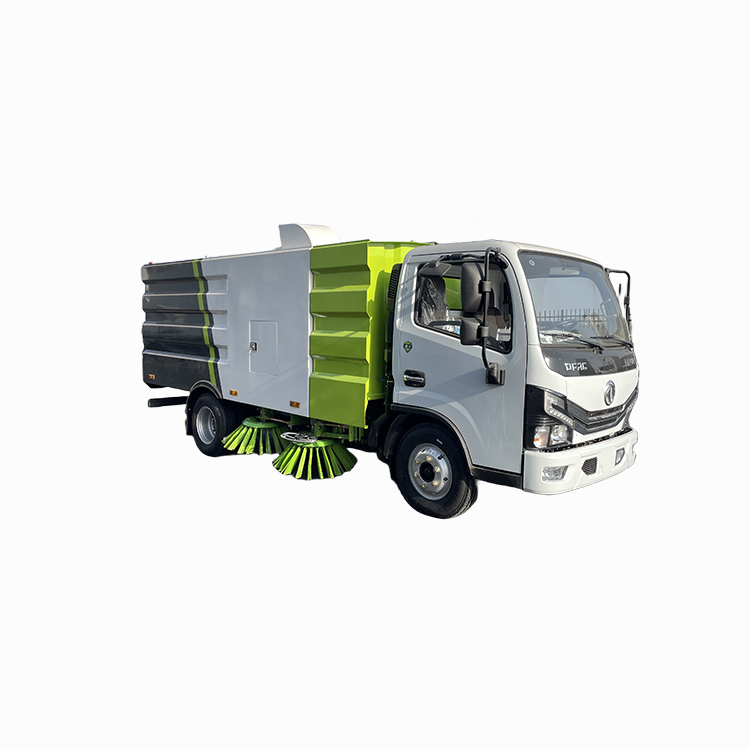

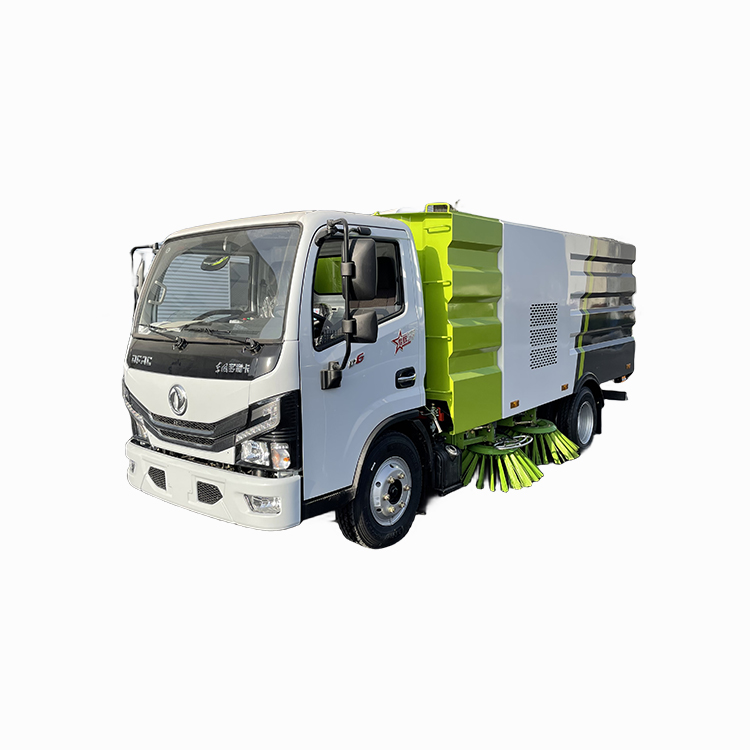

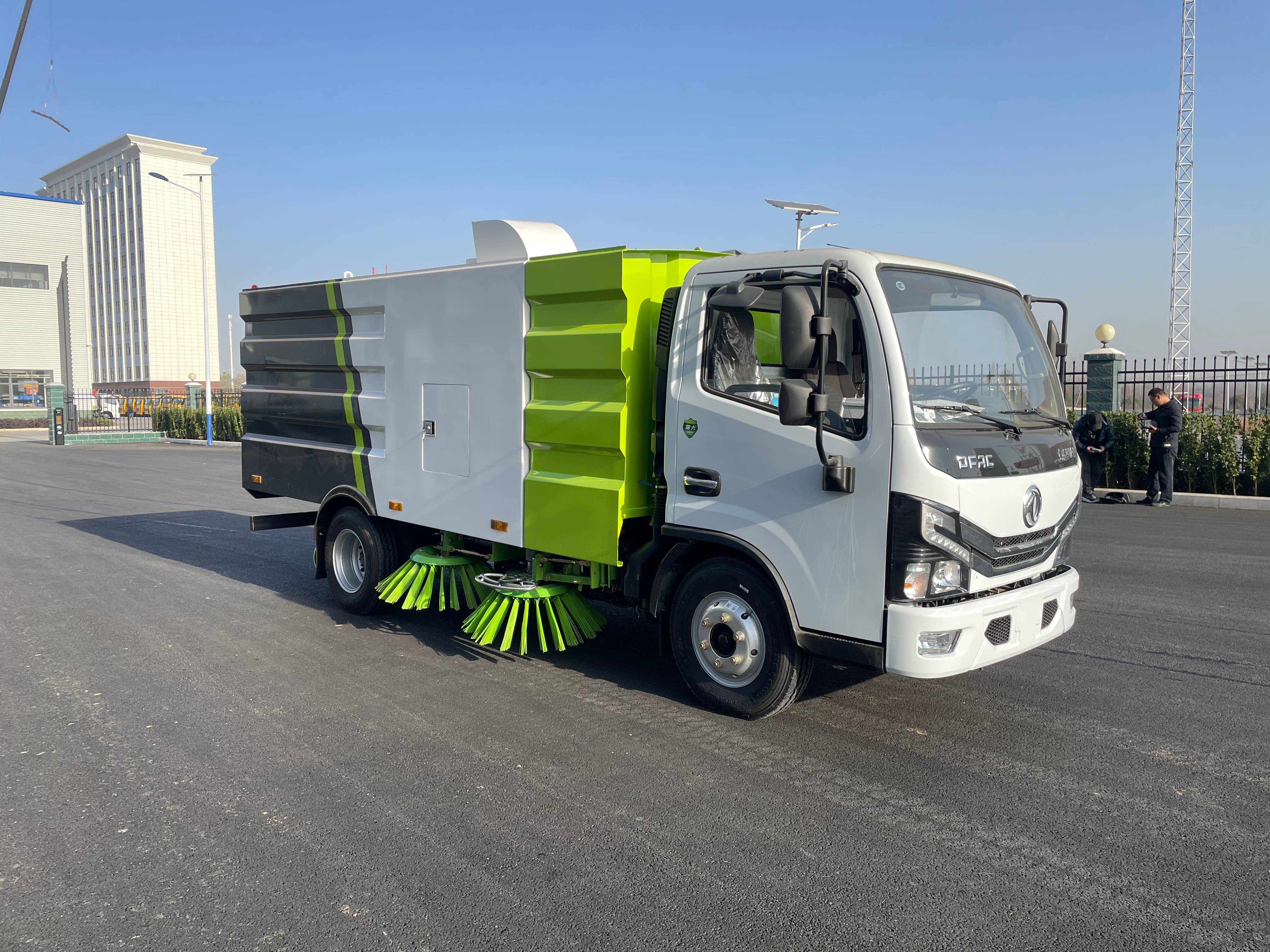

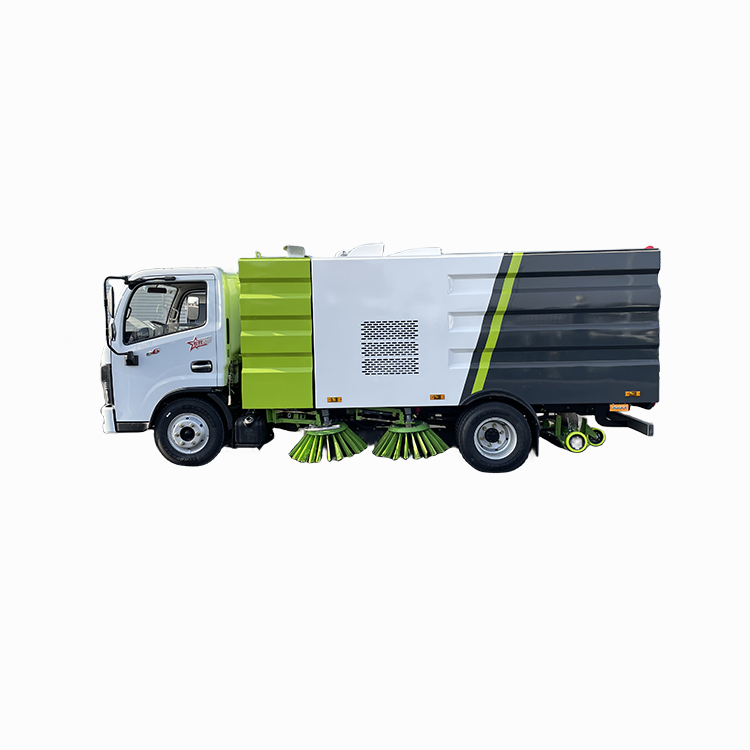

Dongfeng New Street Sweeper Vacuum Truck for sale

Basic Info

Model No.: YZR5045TSL6

Brand: XDR

Applicable Industry: Hotels, Manufacturing Plant, Food &Amp; Beverage Factory, Farms, Construction Works, Energy &Amp; Mining, Other

Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: Ordinary Product

Core Component Warranty Period: 1 Year

Core Components: Engine, Gearbox, Pump

Status: New

Place Of Origin: China

Warranty Period: 1 Year

Steering Wheel: Left Hand Drive (LHD)

Water Tank Capacity: 1.5m3 with carbon steel

Trash Tank Capacity: 4m3 with stainless steel

Auxiliary Engine: JMC 77hp

Sweeper Width: 3-3.2m

Working Ability: 45000-90000m2/h

Inhalation Particles: 110mm

Product Name: Dongfeng Brand New 4*2 Street Sweeper Vacuum Truck for sale

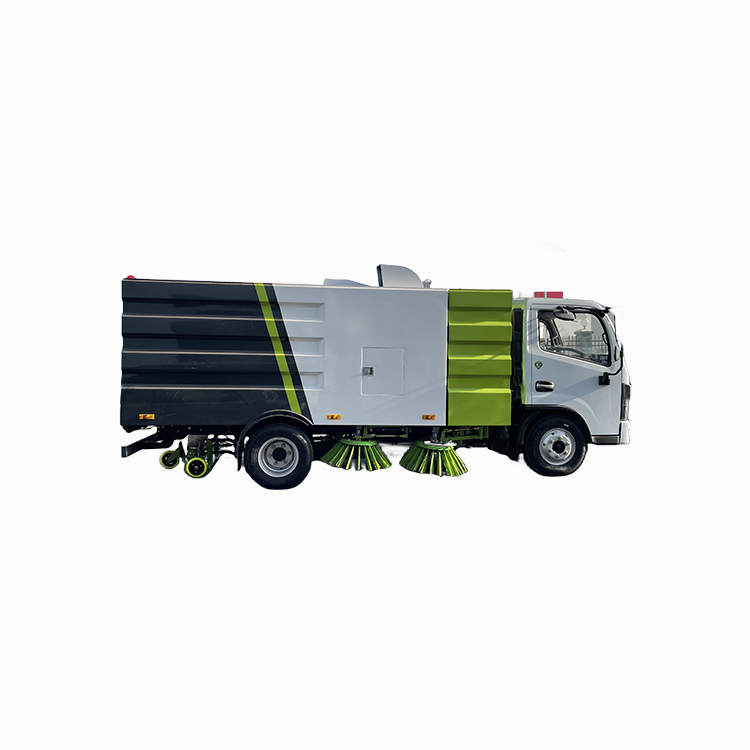

Overall Dimension (mm): 5990×2050×2600

Wheelbase (mm): 3308

Additional Info

Packaging: NAKED WITH WAXING

Productivity: 1000UNITS/YEAR

Transportation: Ocean,Land

Place of Origin: CHINA

Supply Ability: 1000UNITS/YEAR

Certificate: ISO9001

HS Code: 8705909990

Port: SHANGHAI,WUHAN,TIANJIN

Product Description

1. road sweeper truck Description

A road Sweeper Truck is a specialized vehicle designed to clean streets, highways, and other road surfaces by removing dirt, debris, and litter. It typically consists of several key components that work together to ensure effective street cleaning. Here’s a description of its major features,let's see its crucial role in maintaining clean,safe,and environmentally friendly urban and rural spaces:

1	Sweeper Type	truck mounted road sweeper truck,4-cylinder diesel engine
2	Condition	Brand New
3	Compliance Standard	Euro 6
4	No of mechanical sweeping machine	4pcs
5	Minimum sweeping width	3200mm
6	Waste Container Volume	4cbm
7	Dust Control	by water sprinkling nozzles on side brushes
8	Water Tank	1500liters with cabin-controlled water pump
9	Sweeping speed and travel speed	3-25km.h & 85km/h
10	Engine rating	115hp
11	Conveyor	Heavy duty construction and collect all types of material with the help of brooms
12	Brushes	side brush/main brush:900mm suction diameter:200mm sweeping width:3200mm
13	Hopper dumping	rear dumping 45 degree
14	Hydraulic system/controls	hydraulic
15	Control Panel	in cabin control,English version

Key Components:

1. Sweeping Mechanism

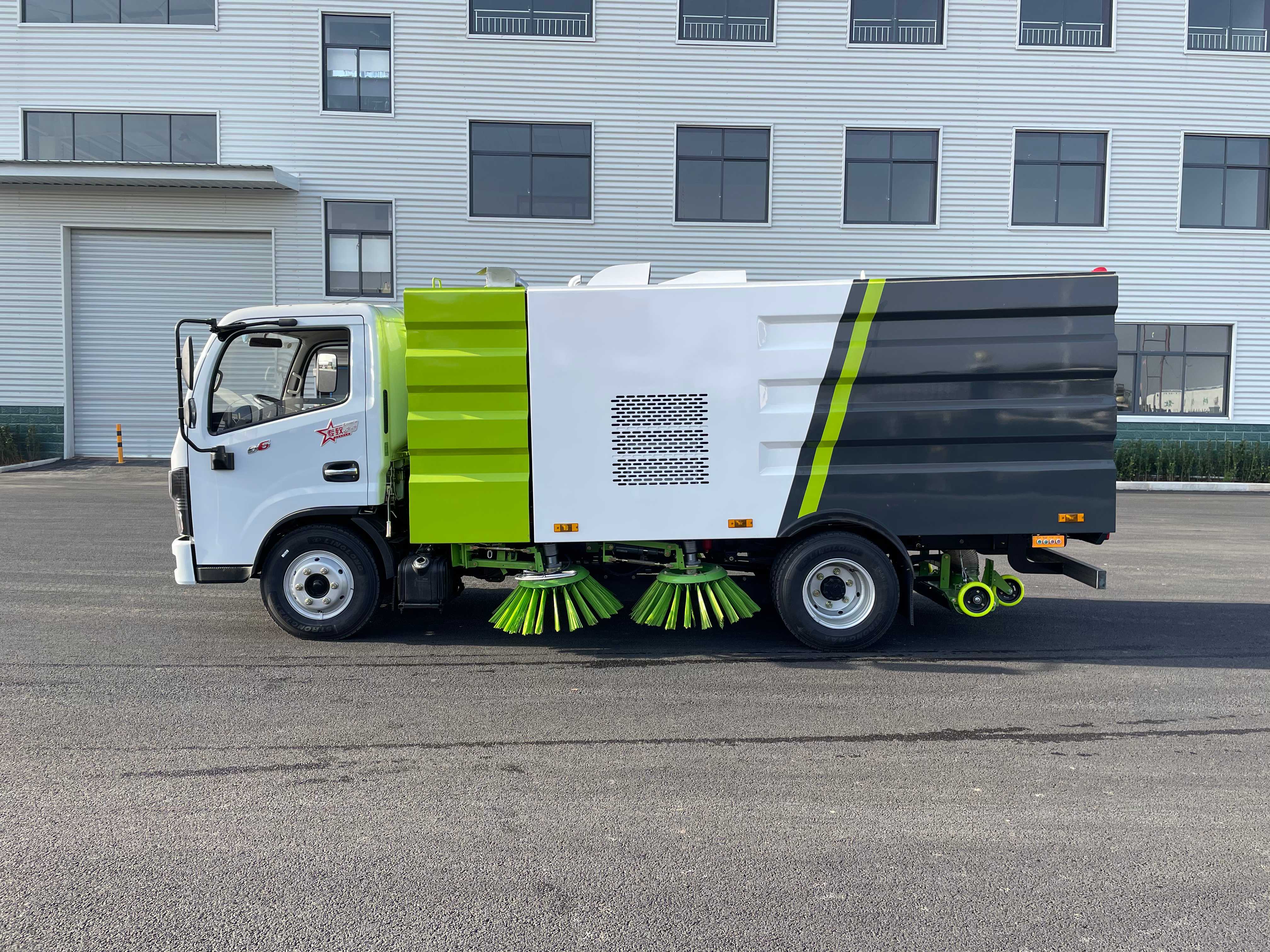

The Sweeper road truck is equipped with four side rotating brushes that agitate and sweep debris off the road. These brushes cans be adjusted for different angles and speeds,depending on the cleaning requirements.

2.Vacuum System

A powerful vacuum system is used to suck up the debris and dust lifted by the brushes. The debris is then stored in a large hopper or collection bin on the Dongfeng sweeper truck.

3.Hopper

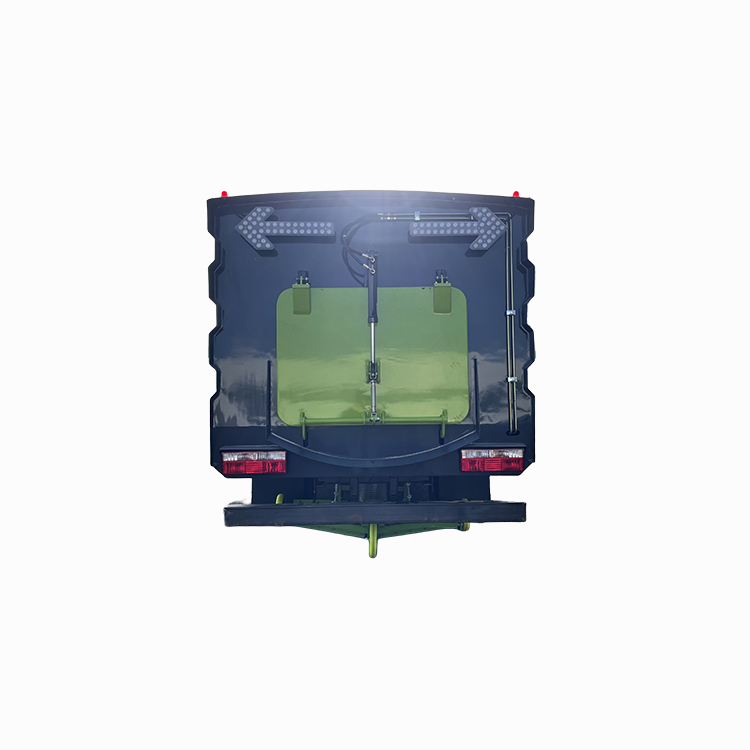

The hopper is a large container ,with a capacity of 4cbm,where the debris is collected. Some models have a hydraulic system to tilt and dump the contents into a larger disposal container or a landfill.

4.Water Spraying System

To minimize dust,a water spraying system is employed with this Dongfeng road sweeper truck. It wets the road surface before and during sweeping,reducing airborne dust and helping the brushes pick up finer particles.

5.Driver's cab

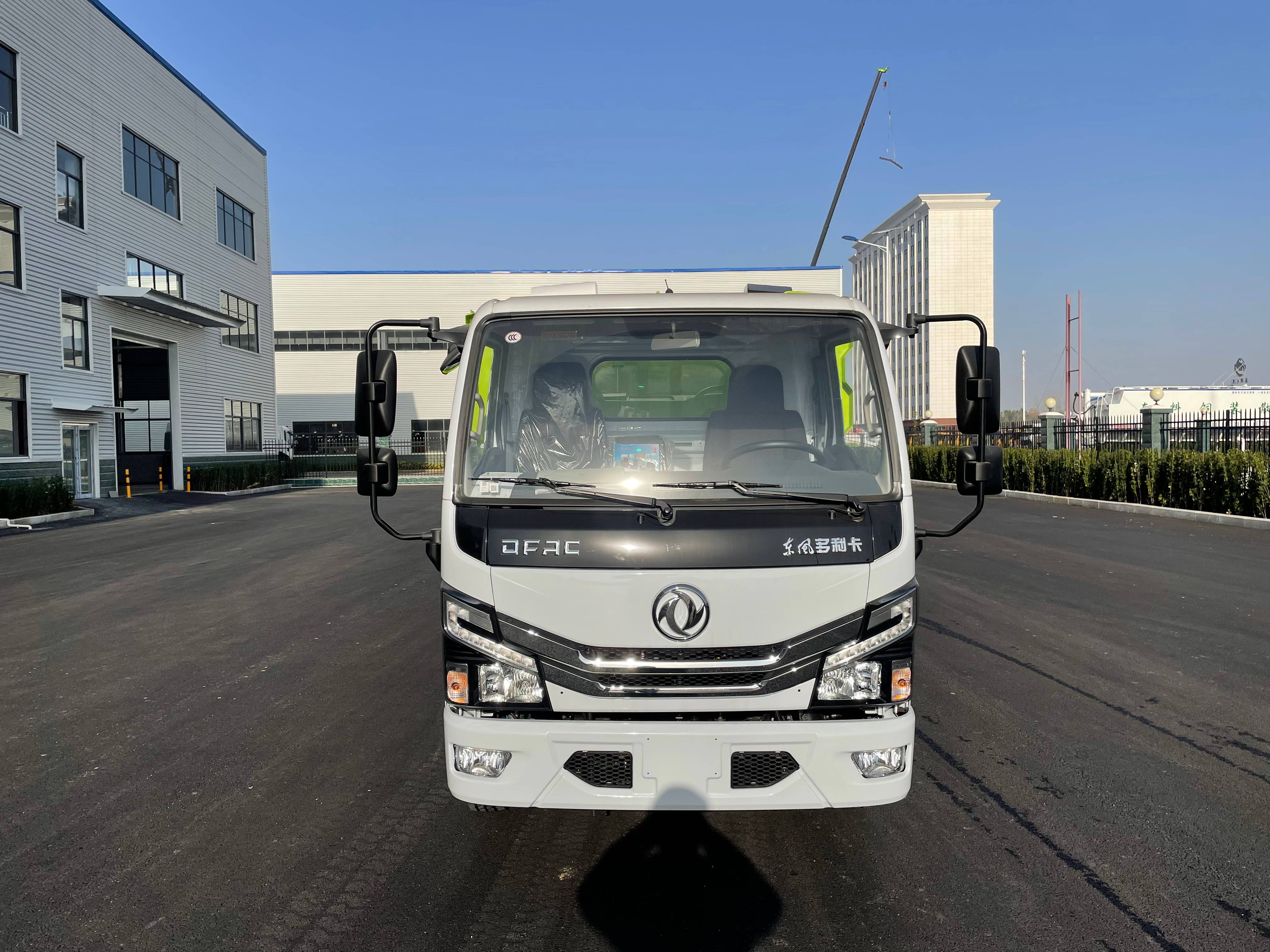

The Dongfeng sweeper truck is driven by a cab located at the front of the vehicle,where the operator can control the sweeping mechanism,water spraying and other functions.

6.Engine and power system

The Dongfeng sweeper truck has a delicated engine or a PTO(power take-off) system that powers the sweeping and vacuum components. In our sweeper truck models,the sweeper components are powered by the truck's primary engine.

Types of Road Sweeper Truck

1. Mechanical Sweepers

These sweepers rely primarily on rotating brushes to move debris into a collection area. They are often used for general street cleaning and are relatively simple in design

2. Vacuum Sweepers

These are equipped with a strong vacuum system that can lift and collect debris directly into the hopper without relying as much on mechanical brushes.Vacuum sweepers are often used for more thorough cleaning or when dealing with finer dust.

3.Combination Sweepers

These combine both mechanical brushing and vacuum systems for a more comprehensive cleaning performance,often seen in urben areas or on highways.

Applications

1. Urban street cleaning: The Dongfeng road sweeper truck is used extensively in cities to keep roads free from dirt,leaves, and other debris.

2.Highway Maintenance: The sweeper road truk helps maintain cleanliness on highways,often clearing debris,sand,or gravel left behind by traffic or weather conditions.

3.Airport Runways and Packing Lots: Special road sweeper are sometimes used to maintain cleanliness on runways,taxiways, and large parking areas.
