FOTON 3-4 tons recovery vehicle

A tow truck, also known as a wrecker, is a special vehicle designed for moving disabled, improperly parked, impounded, or otherwise indisposed motor vehicles. It plays a crucial role in keeping the roads safe and clear. It is usually big and strong.



Tow trucks are equipped with various devices to perform their tasks. For example, they often have winches. The winches are used to pull vehicles up onto the truck's flat bed. Some tow trucks can lift two wheels of the disabled vehicle off the ground while towing it. They may also have special hooks and chains to secure and lift the cars.



There are different types of tow trucks. Rollback trucks are one type. They have an adjustable deck and a hydraulic system. Wrecker body tow trucks are another type, which are mainly used to move inoperable vehicles. According to the towing capacity, tow trucks can be divided into light-duty, medium-duty, heavy-duty and super heavy-duty ones. Light-duty tow trucks are used for light trucks, minibuses and cars. Medium and heavy-duty tow trucks are designed for medium and heavy trucks, large and medium buses. Super heavy-duty tow trucks are used for heavy trucks and super heavy semi-trailer truck series.



In conclusion, tow trucks are of great significance in traffic management and vehicle rescue. They help to quickly deal with road accidents and vehicle breakdowns, and ensure the smooth flow of traffic.



Specification:

Truck Brand	FOTON
Vehicle main dimension	(L*W*H)mm	7400*2300*2380
	Wheelbase (mm)	3800
Weight	GVW (kgs)	8800
	Curb weight(kgs)	4550
Drive type	4*2, left rudder
Engine	Brand	Cummins
	Model	F3.8s3141
	Type	4 cylinders,inline, supercharged and inter-cooling
	Horse power	141hp
	Emission	Euro III
Gearbox	6 forwards & 1 reverse
Tire	7.50R16, 6+pcs
Brakes	Air brake
Flatbed deck	Platform size	5.6*2.2m, 50mm thickness anti-slip deck
	Payload	4,000kgs
	Application	Transporting cars, vans, SUV, mini vans and etc
	Control	Hydraulic control lever kit on both side
	Operation	Hydraulic control flatted extend and rollback
Under-lift system	Towing capcity	3,000kgs, hydraulic control lifting
Winch		4,000kgs cable 25m
Color &Logo	As your request
Others	1.Auxiliady wheels 2pcs
	2.Bulding belts 4pcs
	3.L type tire bracket 1 set
	4. Rear tail LED lights, both side electronic lights

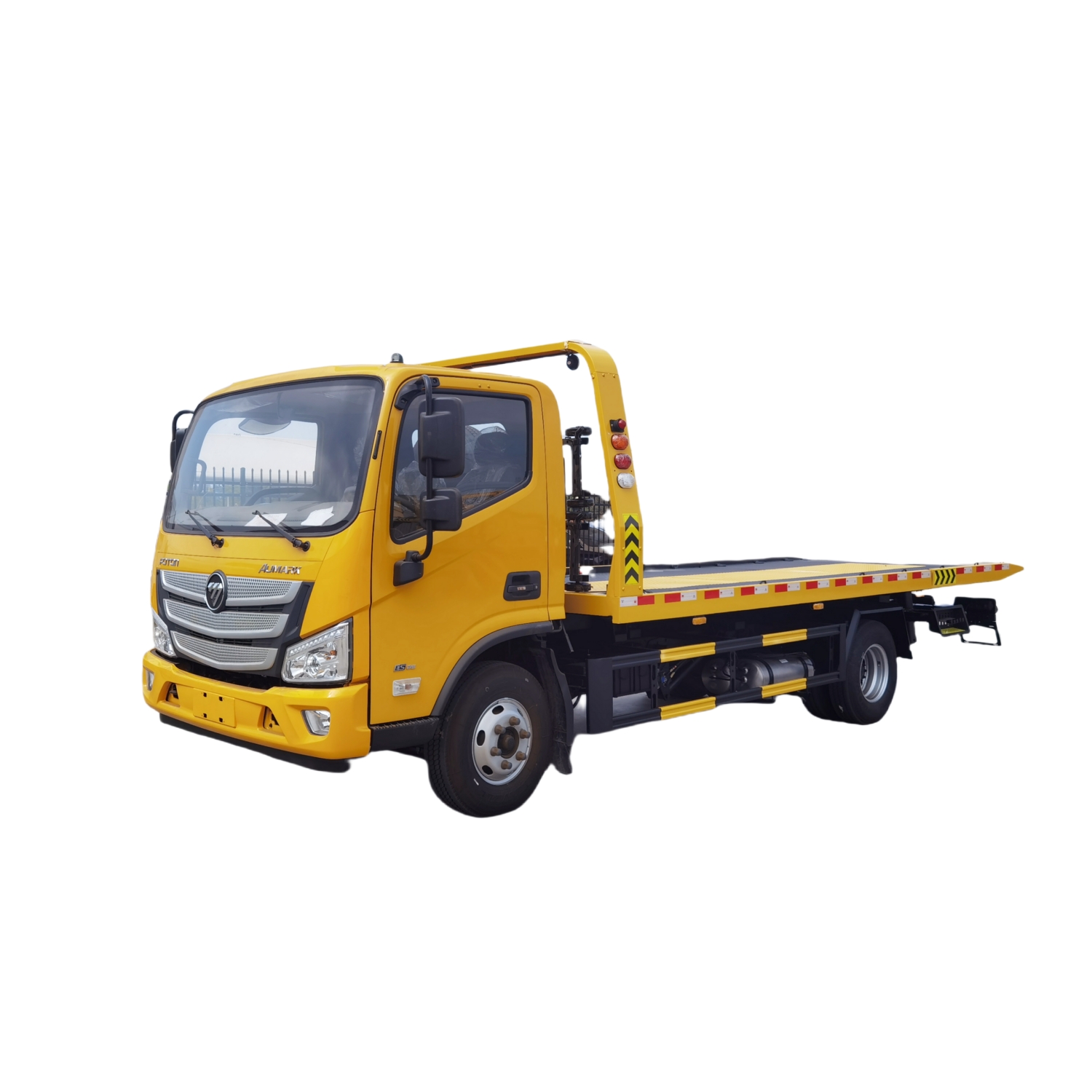

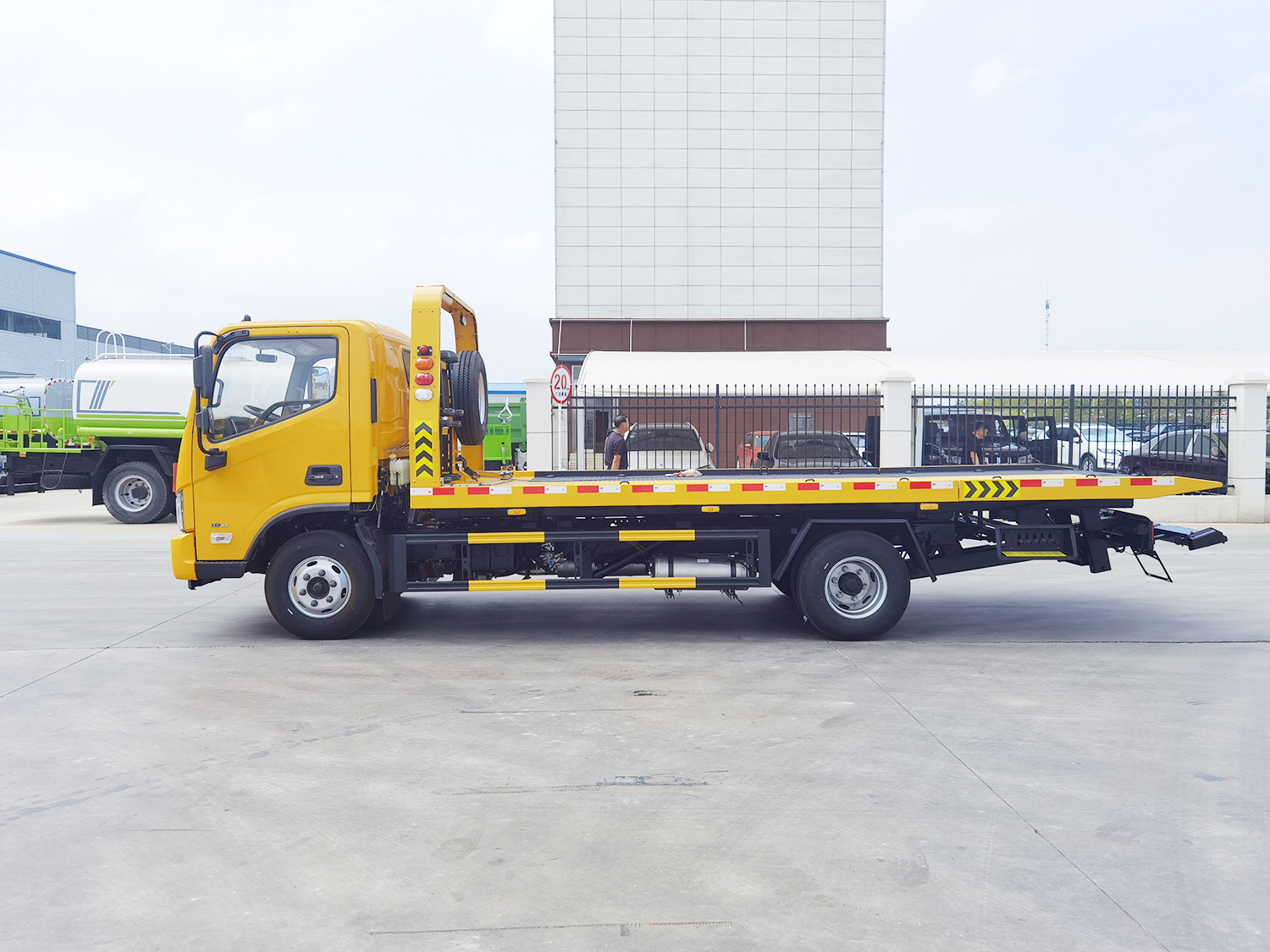

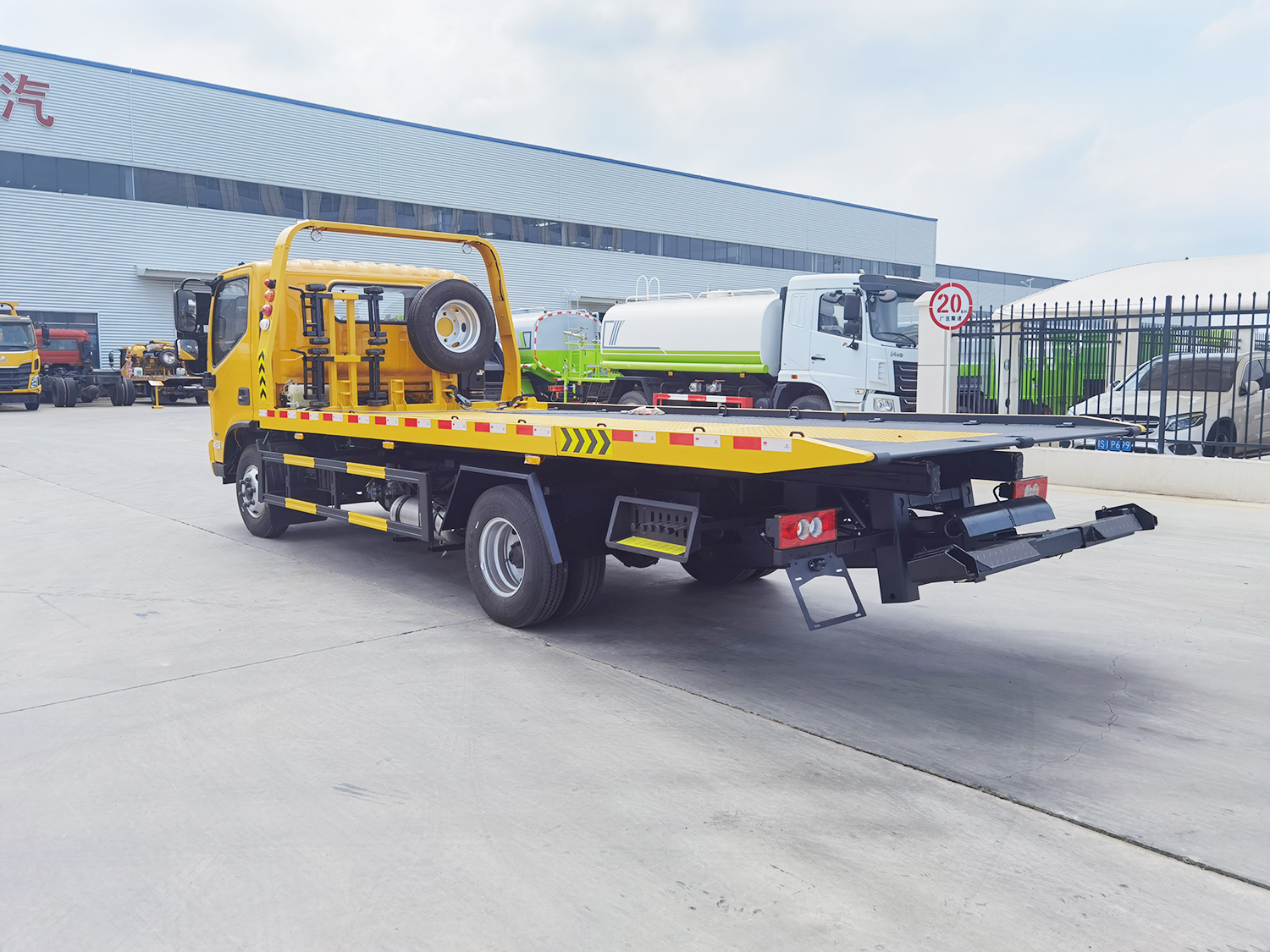

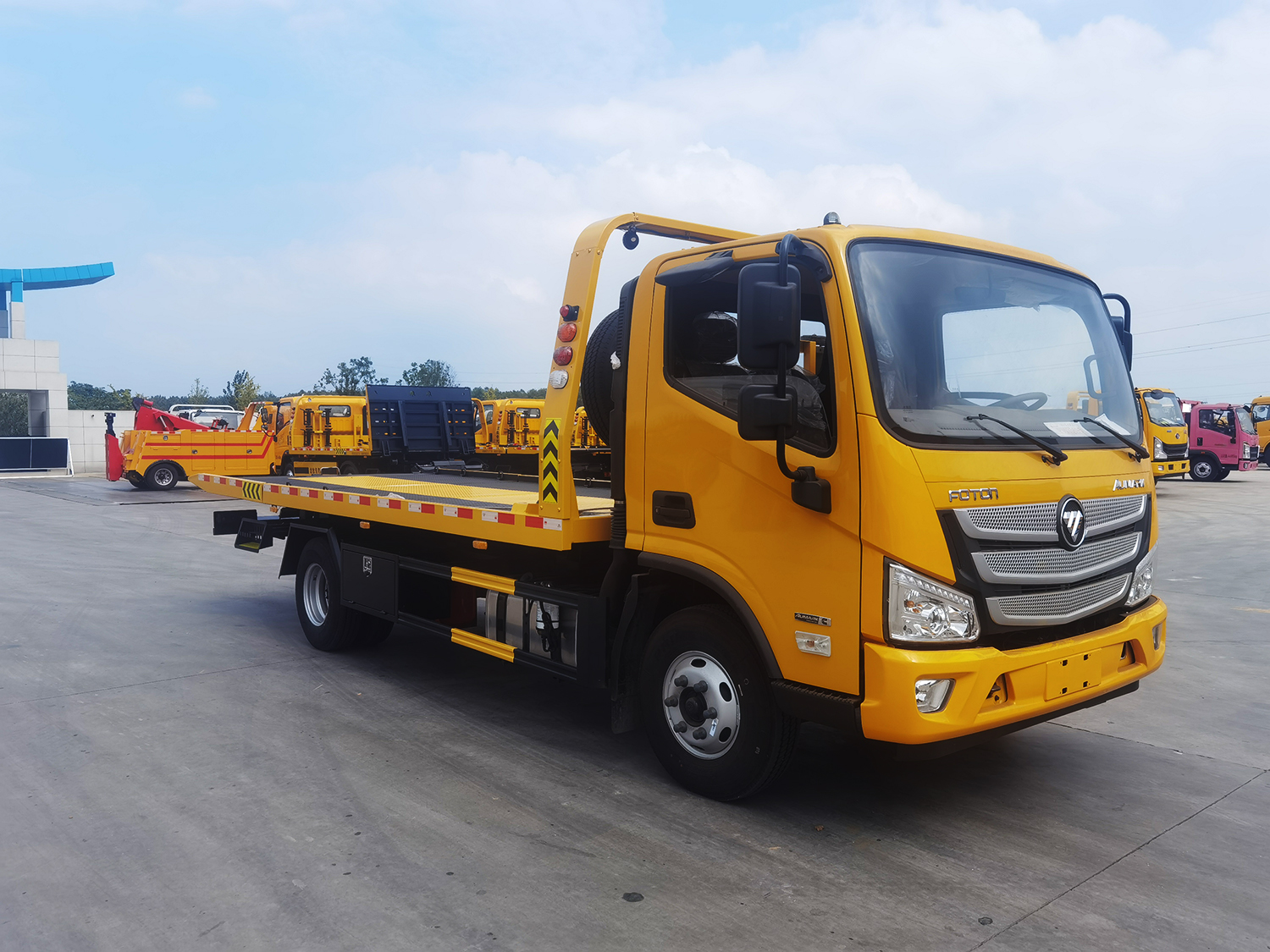

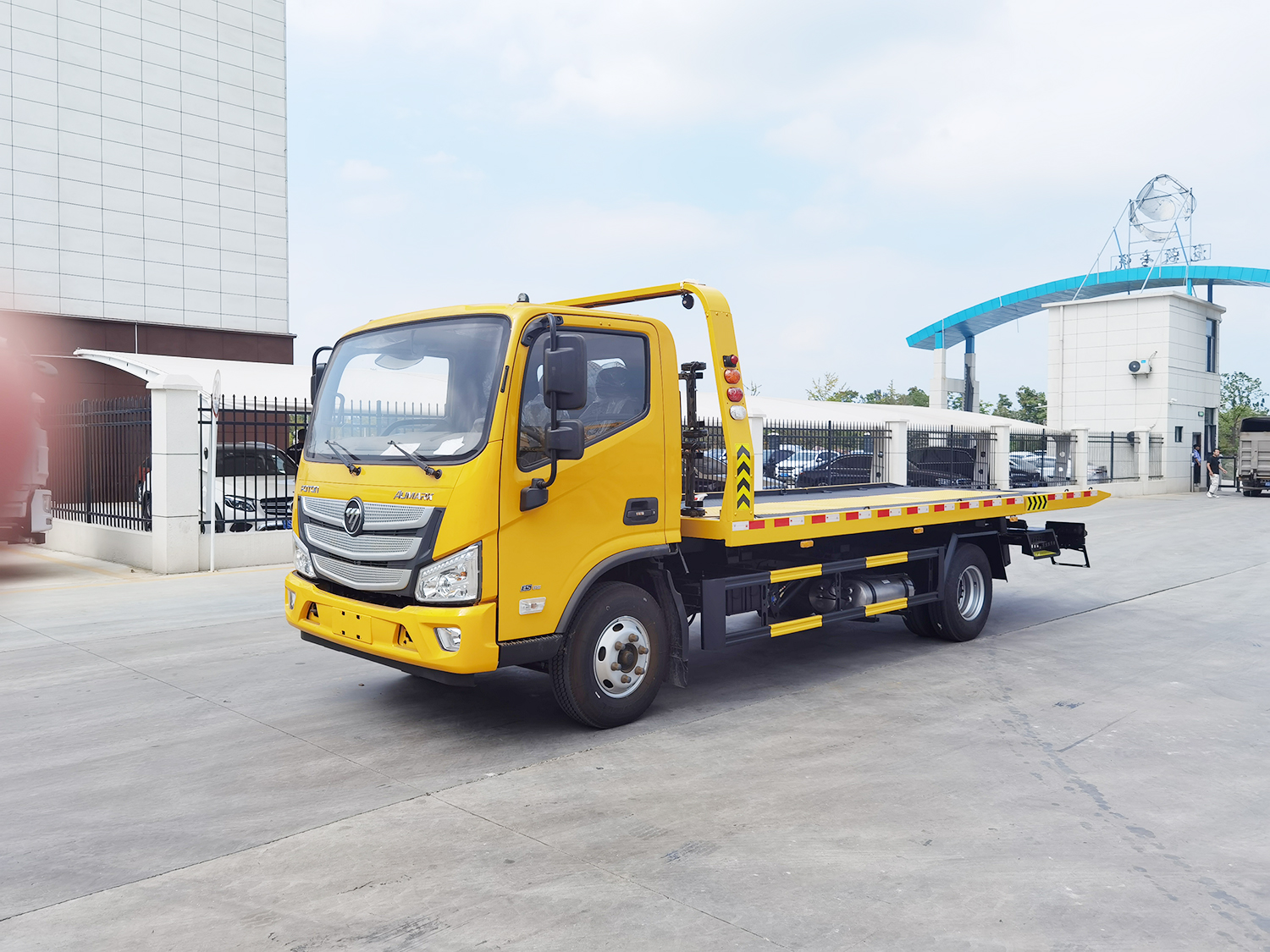

Truck View:
