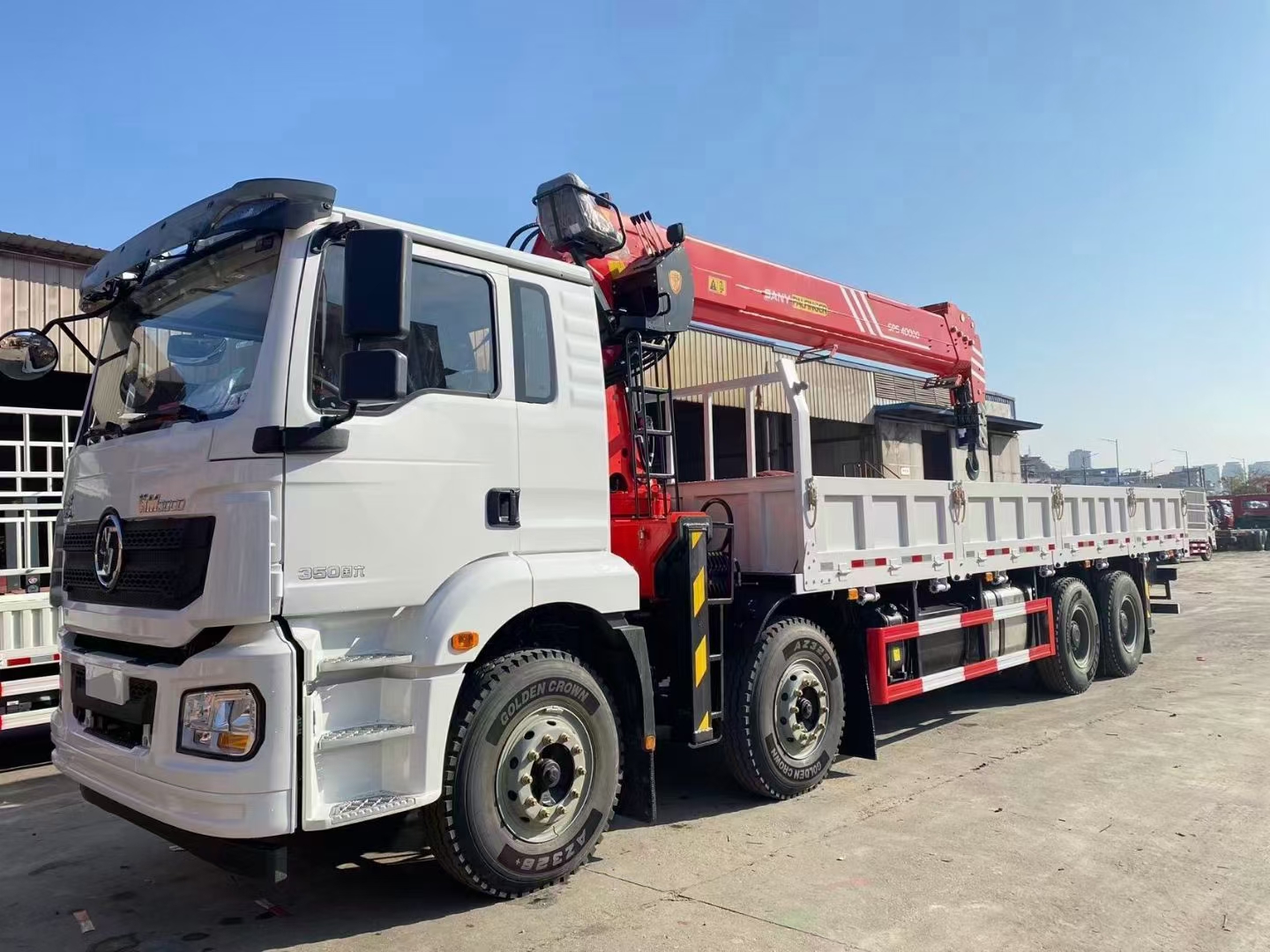

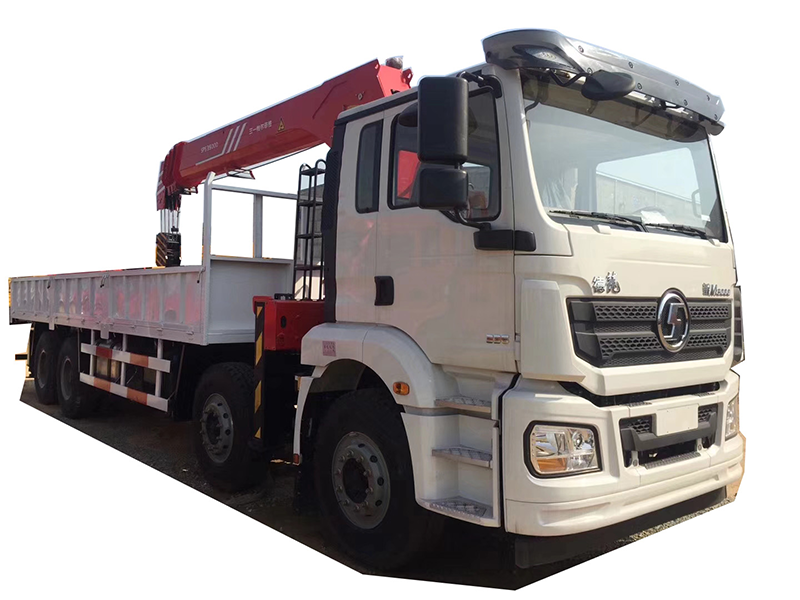

42T Shacman truck mounted 16T UNIC crane

Basic Info

Model No.: YZR5400JSQSX5

Brand: shacman brand

Old And New: New

Deadweight: 31 - 40t

Drive Form: 8x4

Horsepower: 351 - 450hp

Emission Standards: Euro 2, Euro 3

Fuel: Diesel

Displacement: > 8l

Place Of Origin: China

16T China Crane Truck: 5 sections arm crane truck

Additional Info

Packaging: bulk

Productivity: 1000 sets/month

Transportation: Ocean,Land

Place of Origin: HUBEI,CHINA

Supply Ability: 1000 sets/month

Certificate: ISO,CCC

Port: shanghai,qingdao,Tianjing

Product Description

a Shacman brand lorry (or truck) with a 380 horsepower engine, and it's equipped with a 16-ton UNIC crane. This type of vehicle is commonly used in construction, logistics, and other industries where heavy lifting and transportation are required:

1. Shacman Brand
- **Manufacturer: Shaanxi Automobile Group Co., Ltd. (Shacman) is a major Chinese manufacturer of heavy-duty trucks.
- **Reputation: Known for producing reliable and robust vehicles, especially in the commercial and industrial sectors.
3. 42T Gross Vehicle Weight (GVW)**
- **Capacity**: The total weight of the vehicle when fully loaded, including the chassis, body, cargo, and crane, is 42 tons.
- **Payload**: The actual payload capacity will be less than 42 tons, as it must account for the weight of the truck itself, the crane, and any additional equipment.
### 5. **16T UNIC Crane**
- **Brand**: UNIC is a well-known Japanese manufacturer of cranes, known for their reliability and precision.
- **Lifting Capacity**: The crane can lift up to 16 tons, which is substantial for many applications.
- **Features**: UNIC cranes often come with features such as remote control operation, telescopic booms, and stabilizers to ensure safe and efficient lifting.

Shacman brand 42T Crane transport truck
Payment Term	30% T/T in advance,70% before shipment
Warranty	12 months
Overall Dimension	11,000x2,600x3,650 mm
G.V.W/Curb weight	42,000/11,300 KGS
Max speed	95 km/h
Wheelbase	2100+4575+1400 mm
Engine Model	WP10.380E22/380hp/280KW/9726 ml
Engine type	6 cylinder,water cooling,inter cooling
Fuel	Diesel Euro 2
Transmission	10JSD180/Manual 10+2 gears
Brake	Air brake
Tire	12.00R20/12+1 pcs
Box Max Loading weight	20,000 KGS
Box size	8500x2450x550 mm
Crane	China brand crane/360° rotate/5 sections arm
Crane max lifting weight	16,000 KGS (when work radius=2.5 M)
Outrigger	2 pcs Front+2 pcs rear outrigger
