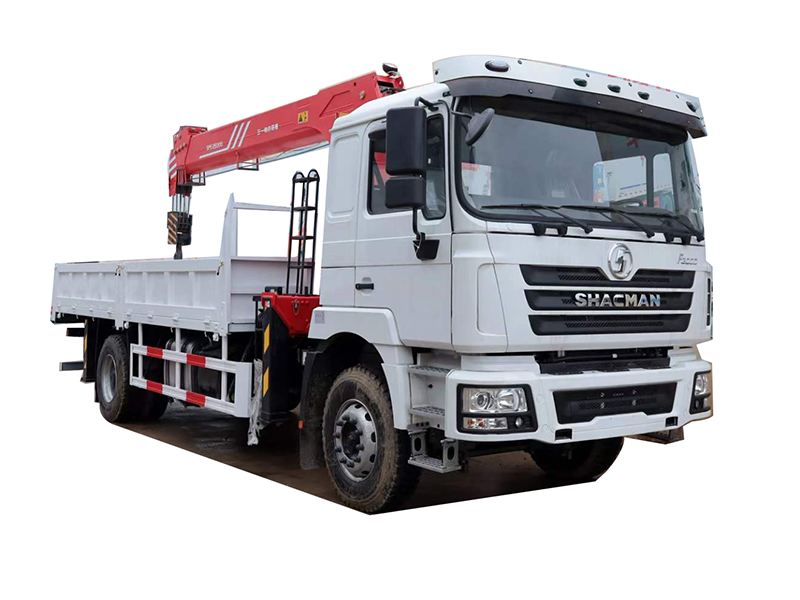

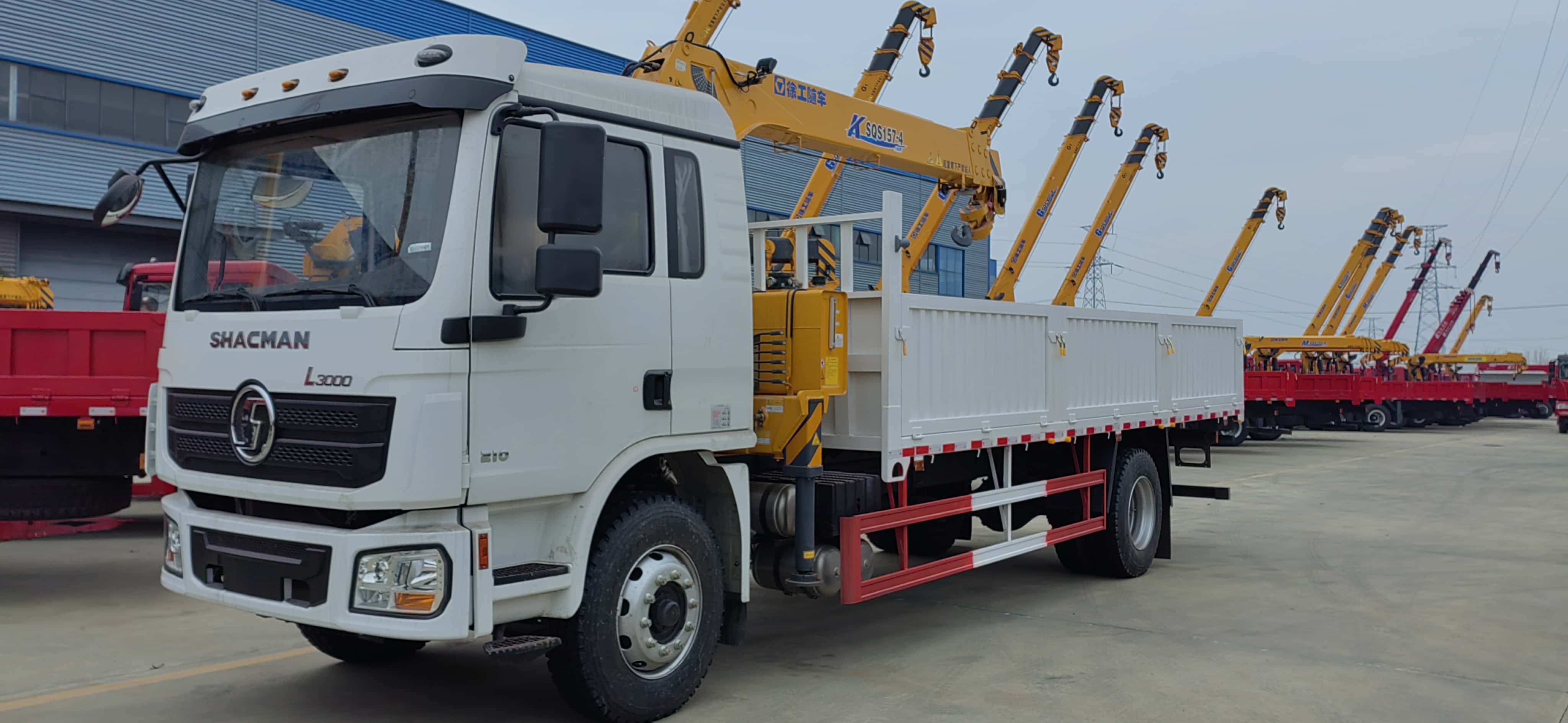

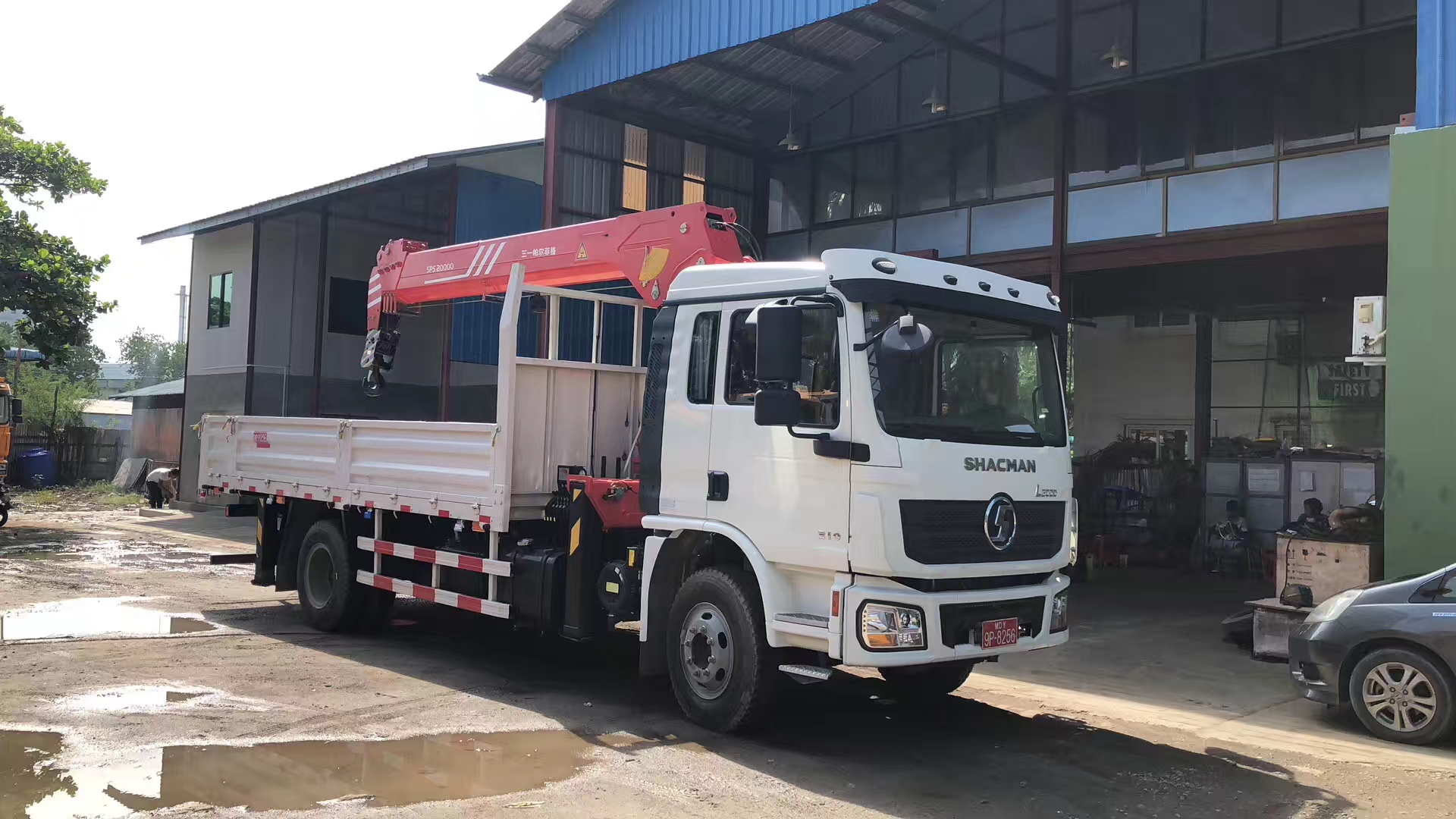

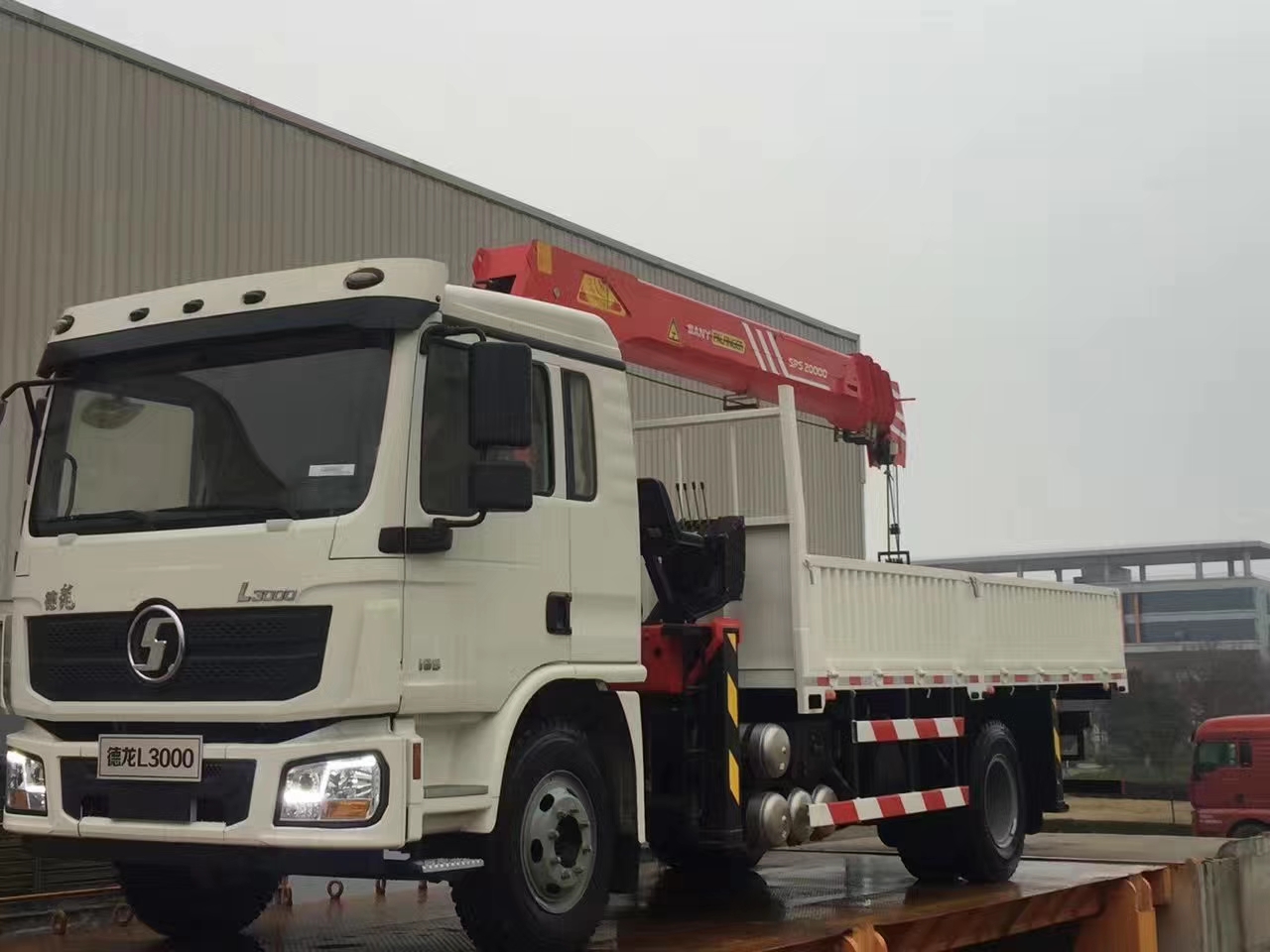

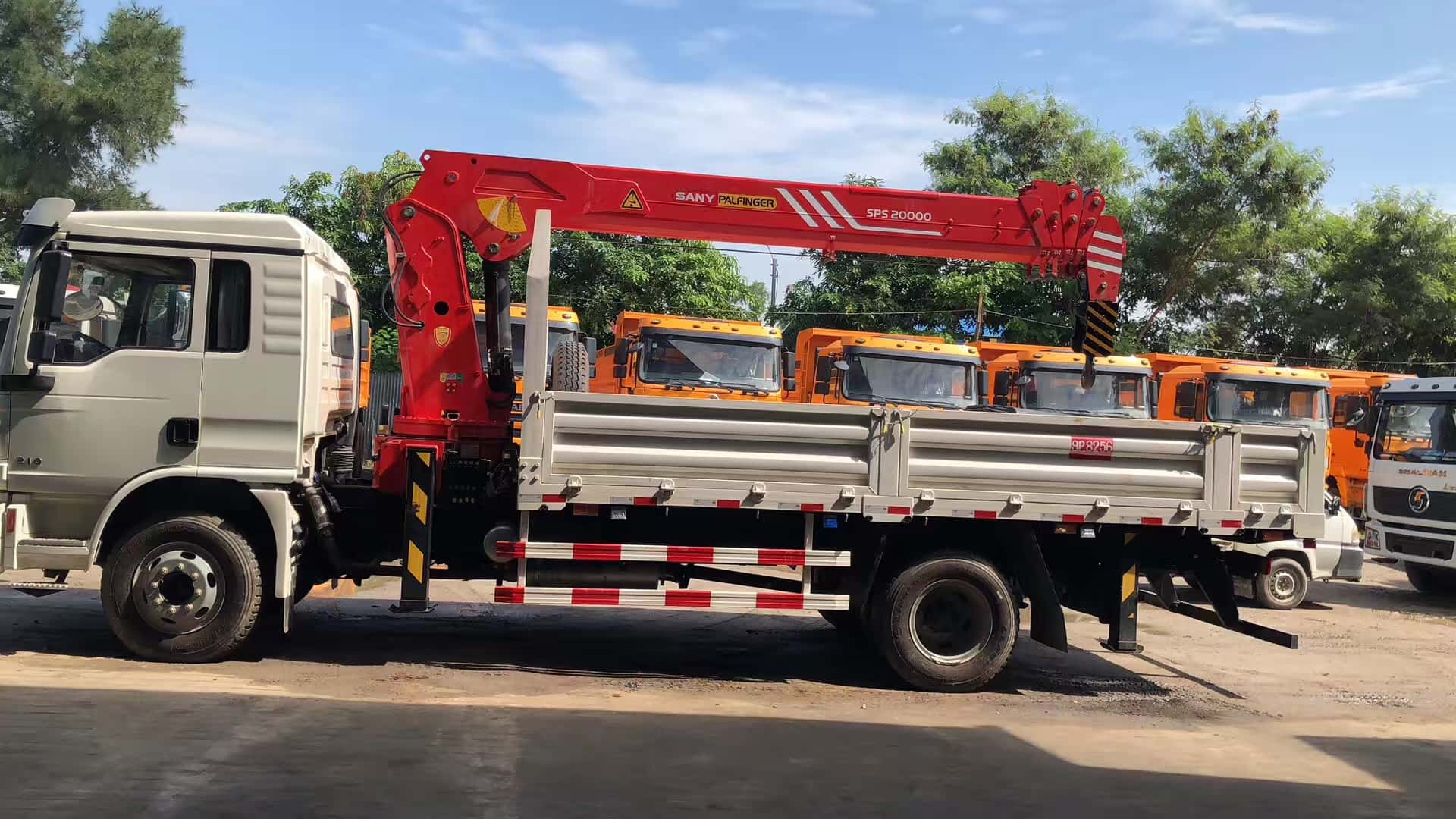

2 axles 190hp Shacman crane transport truck

Basic Info

Model No.: YZR5180JSQSX2

Brand: Sahcman brand

Old And New: New

Gearbox Type: Manual

Emission Standards: Euro 2, Euro 3

Fuel: Diesel

Place Of Origin: China

Manual Gears Truck: 10.00R20 tyre truck

Additional Info

Packaging: bulk

Productivity: 1000 sets/month

Transportation: Ocean,Land,Air

Place of Origin: HUBEI,CHINA

Supply Ability: 1000 sets/month

Certificate: ISO,CCC

Port: shanghai,qingdao,Tianjing

Product Description

A 2-axle, 190 HP Shacman Crane transport truck is a specialized vehicle designed for transporting and lifting heavy loads. Here’s a breakdown of the key features and specifications:
#Key Features:
1. **Axles:
- **2 Axles: This configuration typically means one steering axle at the front and one driving axle at the rear. It provides a good balance between maneuverability and load capacity.
2. **Engine:
- **190 HP (Horsepower):** The engine power is 190 horsepower, which is suitable for moderate to heavy-duty tasks. This power output should be sufficient for most crane operations and transportation needs.
3. **Crane:
- The crane mounted on the truck is designed to lift and move heavy loads. The specific capacity and reach of the crane will depend on the model and manufacturer. Common crane capacities range from 3 to 15 tons, but you should check the specific model for exact details.
4. **Load Capacity:
- The load capacity of the truck will depend on the specific model and configuration. Typically, a 2-axle truck with a 190 HP engine can handle payloads ranging from 10 to 20 tons, but this can vary.
#Applications
- **Construction Sites: Transporting and lifting building materials.
- **Industrial Use:Moving heavy machinery and equipment.
- **Utility Work: Installing and maintaining utility poles and other infrastructure.
- **Logistics: Loading and unloading cargo in warehouses and distribution centers.

Shacman 15T Crane Transport Truck
Payment Term	30% T/T in advance,70% before shipment
Warranty	12 months
Overall Dimension	9,200x2,600x3,650 mm
G.V.W/Curb weight	18000/10200 KGS
Max speed	95 km/h
Wheelbase	5700 mm
Engine Model	WP6.210E32/210hp/155KW/6230 ml
Fuel	Diesel Euro 2
Transmission	8JS85TM/Manual 8+2 gears
Tire	10.00R20/6+1 pcs
Box Max Loading weight	15,000 KGS
Box size	6000x2450x550 mm
Crane	China brand crane/360° rotate/5 sections arm
Crane max lifting weight	8,000 KGS (when work radius=2.5 M)
Outrigger	2 pcs Front+2 pcs rear outrigger
