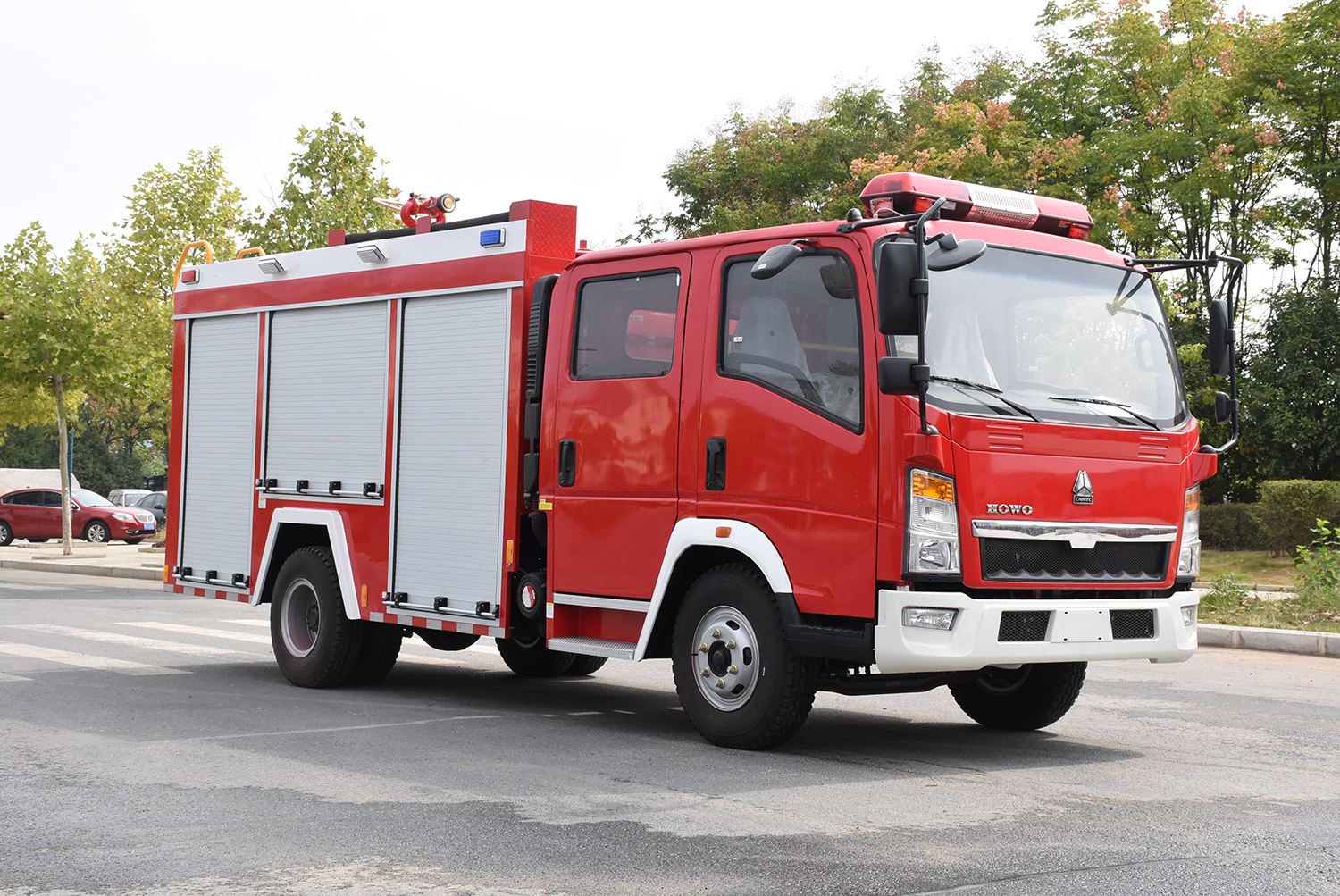

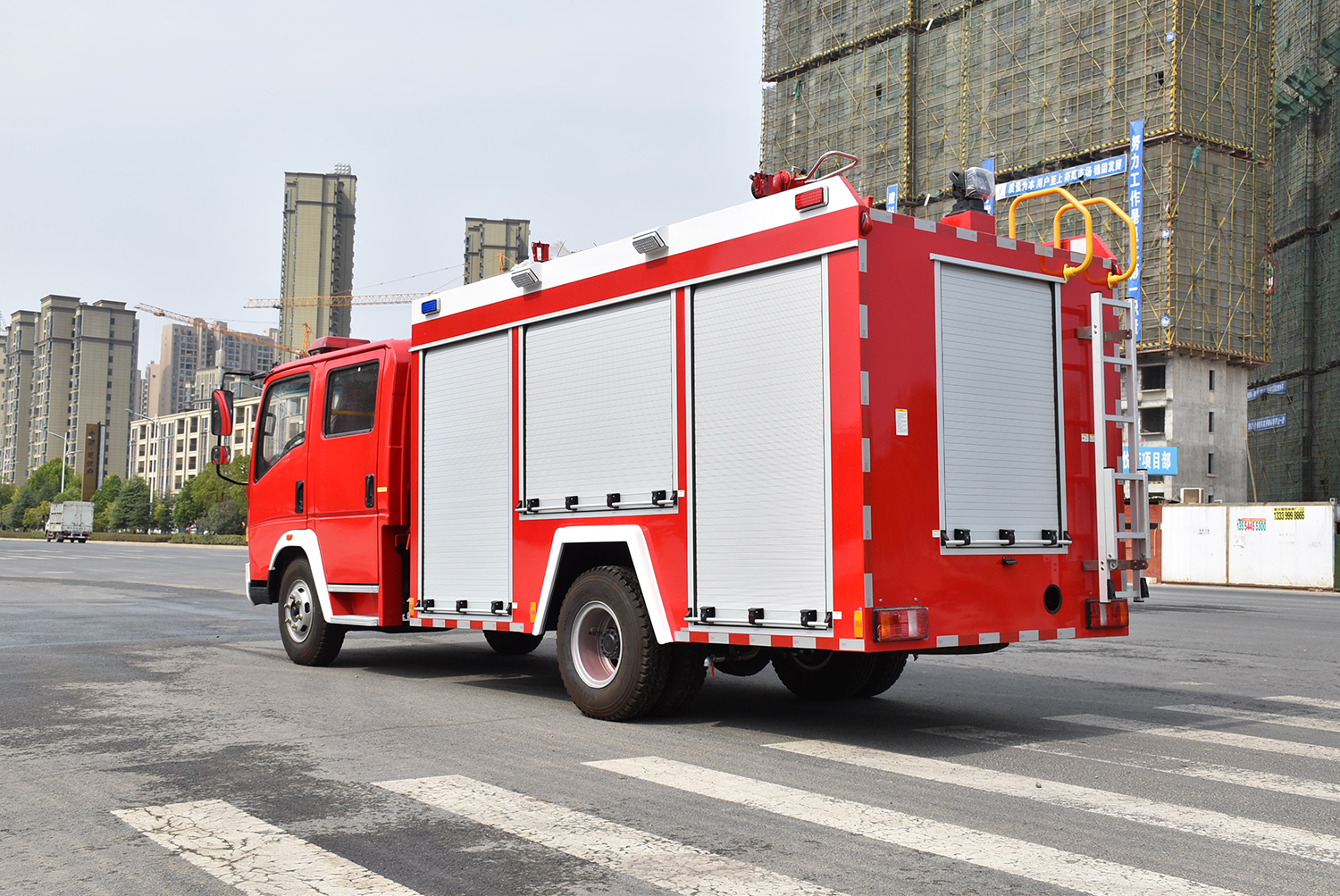

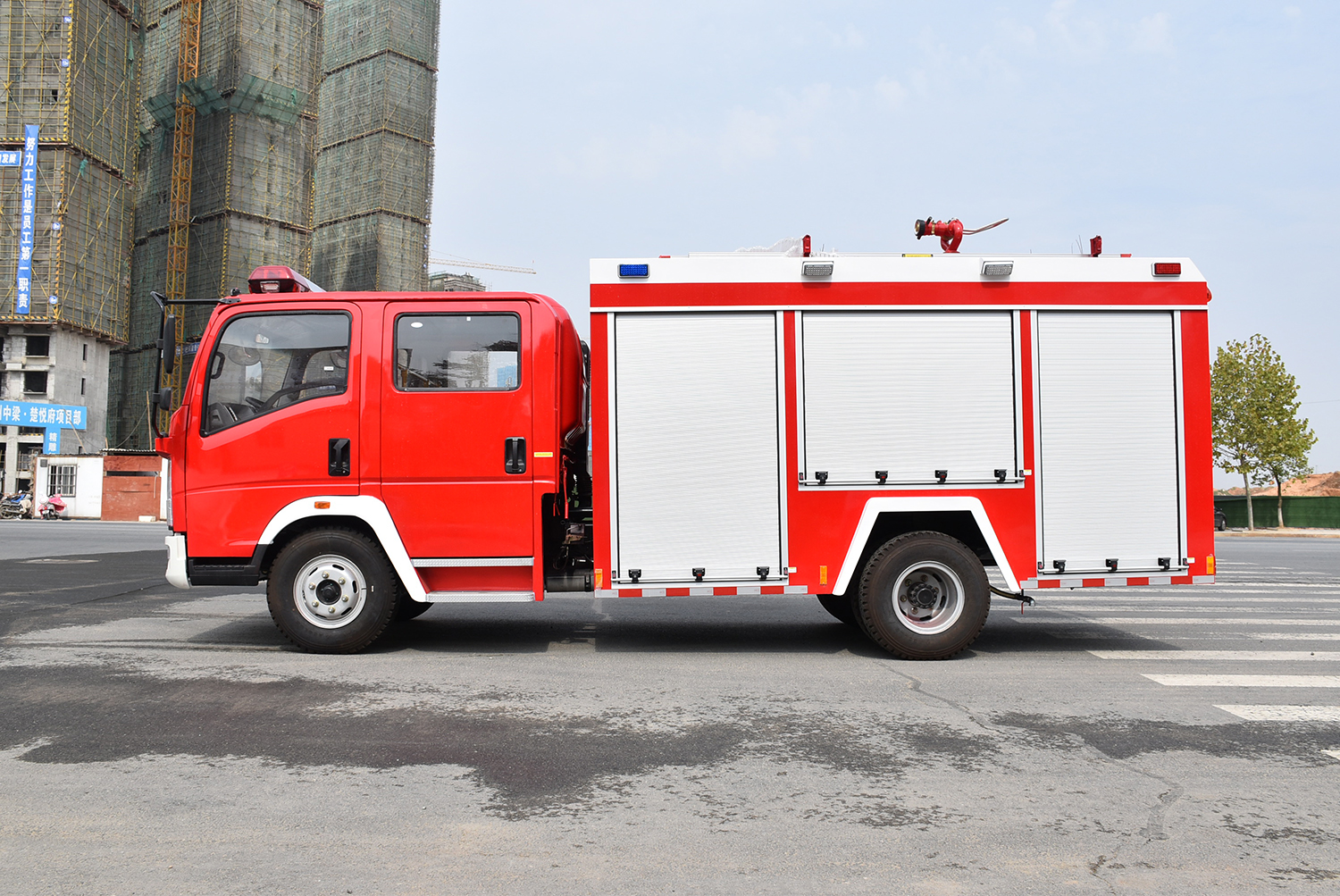

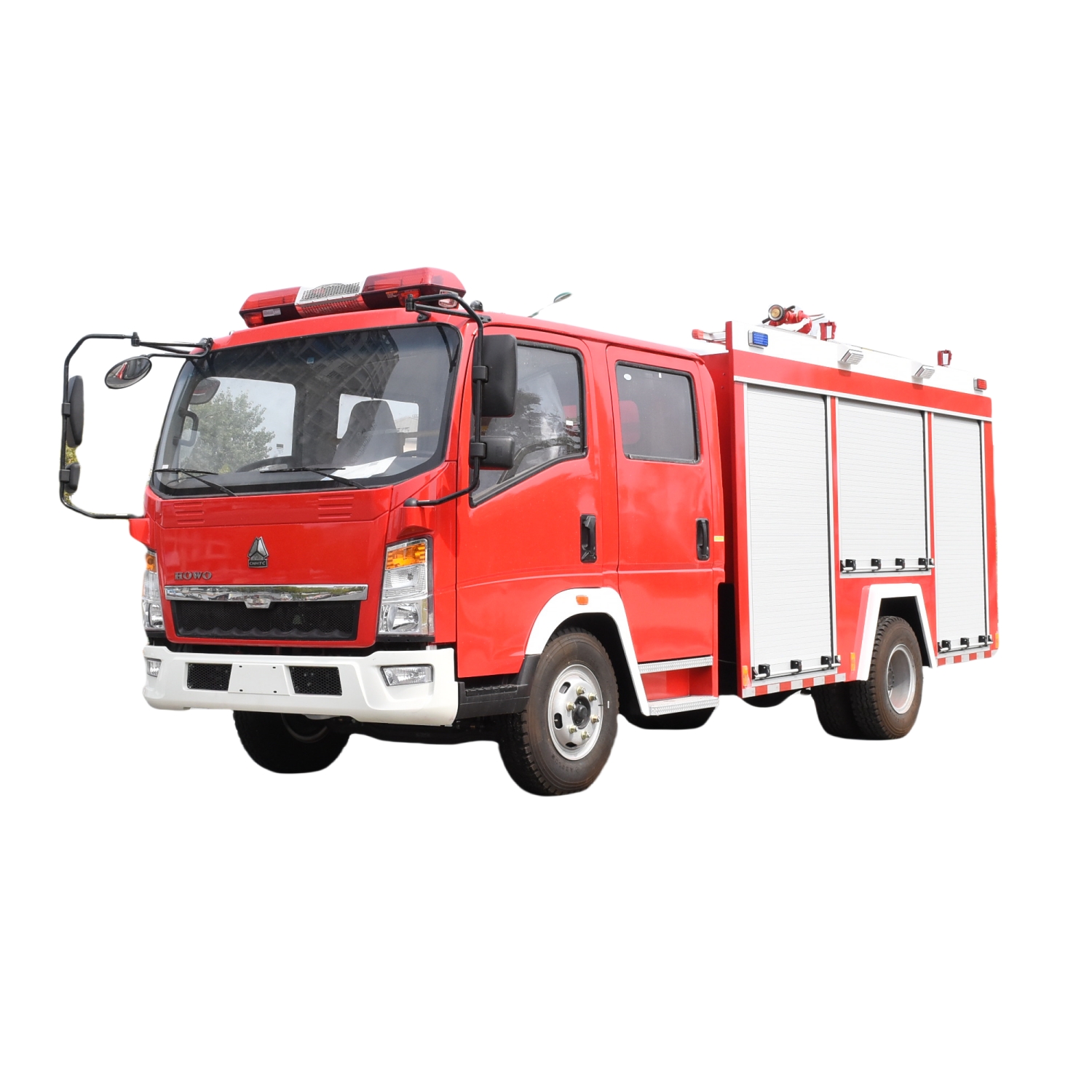

HOWO 4000L water tank fire truck

Fire Truck, also known as a fire engine or Tanker Truck, is a specialized vehicle used by firefighters to combat fires. Here are some key features and components of a typical fire truck:

1. Water tank: Most fire trucks have an onboard water reservoir.

2. Pump system: To pump water from the tank or external sources to hoses and nozzles.

3. Ladder: Extendable ladder for accessing upper levels of buildings.

4. Hose compartments: Storage areas for various firefighting hoses.

5. Tools: Including axes, Halligan bars, and other rescue equipment.

6. Light systems: Powerful floodlights for illuminating dark scenes.

7. Sirens and alarms: For alerting other road users.

8. Crew seating: Space for multiple firefighters.

9. Additional equipment: Such as first aid supplies, breathing apparatus, and cutting tools.

Fire trucks come in different types, including:
- Pumper trucks
- Tanker trucks
- Aerial ladder platforms
- Rescue trucks
- Foam units

These vehicles are essential for rapid response to fire emergencies and often serve additional purposes like rescue operations and hazmat incidents.



Specification:

Vehicle Description
Overall Size	6950*2300*2880mm
GVW	11000kgs
Curb Weight	6150kgs
Chassis Brand	HOWO
Drive Type	4X2 with LHD
Chassis Description
Cab	Crew cab,2+3 seats,with A/C
Wheelbase	3800mm
Tire	8.25R20, 6+1pcs
Engine	Engine Model	YC4E140-33
	Emmission	Euro 3
	Displacement	4.257L
	Horse Power	140hp
Gear box	Manual, 6 forwards +1 reverse
Upper Body
Water Tank	4000L with Carbon steel
Fire Pump	Model	CB10/30
	Flow Rate	30L/S
	Pressure	1.0Mpa
	Suction Depth	7m
Fire Monitor	Model	PS30
	Pressure	1.0Mpa
	Working Range	≥50m
	Rotation Angle	360°
Other	Truck body with aluminum alloy rolling door； PTO control indicator installed in cab, also with 100W siren, LED alarm lamp, sign light, lighting switch, rear lighting and etc.
