ISUZU emergency command powder fire fighting vehicle

Fire Truck, also known as a fire engine or Tanker Truck, is a specialized vehicle used by firefighters to combat fires. Here are some key features and components of a typical fire truck:

1. Water tank: Most fire trucks have an onboard water reservoir.

2. Pump system: To pump water from the tank or external sources to hoses and nozzles.

3. Ladder: Extendable ladder for accessing upper levels of buildings.

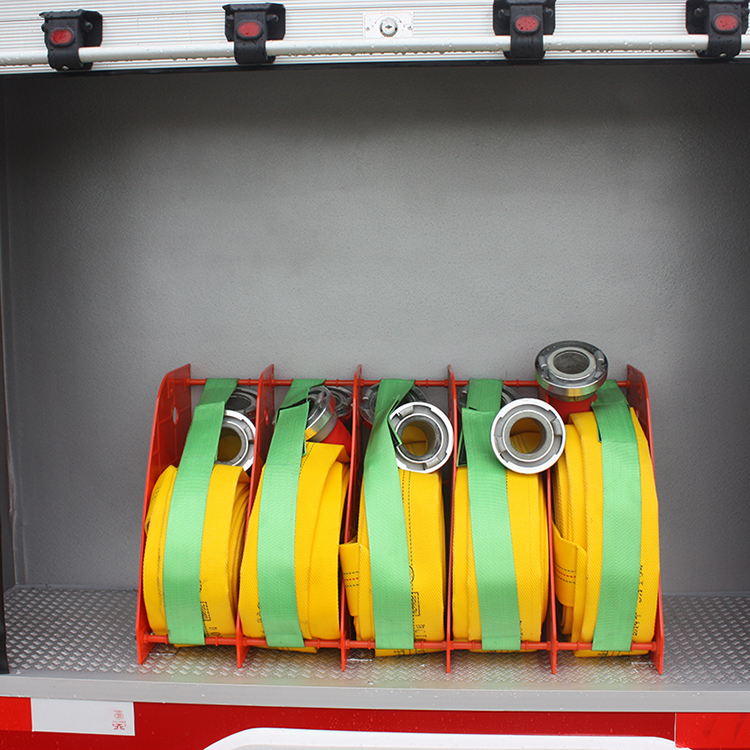

4. Hose compartments: Storage areas for various firefighting hoses.

5. Tools: Including axes, Halligan bars, and other rescue equipment.

6. Light systems: Powerful floodlights for illuminating dark scenes.

7. Sirens and alarms: For alerting other road users.

8. Crew seating: Space for multiple firefighters.

9. Additional equipment: Such as first aid supplies, breathing apparatus, and cutting tools.

Fire trucks come in different types, including:
- Pumper trucks
- Tanker trucks
- Aerial ladder platforms
- Rescue trucks
- Foam units

These vehicles are essential for rapid response to fire emergencies and often serve additional purposes like rescue operations and hazmat incidents.



Specification:

Vehicle Description
Overall Size	12000*2550*3800mm
GVW	42000kgs
Curb Weight	18500kgs
Chassis Brand	ISUZU
Drive Type	8X4 with LHD
Chassis Description
Cab	Crew cab,2+3 seats,with A/C
Wheelbase	1850+4575+1370mmmm
Tire	295/80R22.5, 6+1pcs
Engine	Engine Model	6WG1-TCG61
	Emmission	Euro VI
	Displacement	15.681L
	Horse Power	460hp
Gear box	Manual, 8 forwards +1 reverse
Upper Body
Water Tank	12000L with Carbon steel
Foam tank	2000L with stainless steel
Dry powder tank	1000L

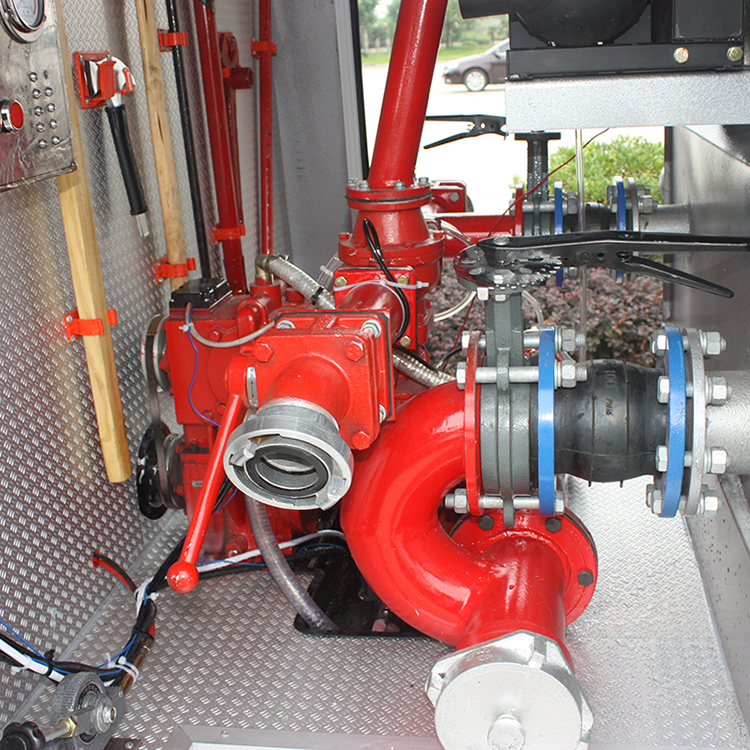

Fire Pump	Model	CB10/60
	Flow Rate	60L/S
	Pressure	1.0Mpa
	Suction Depth	7m
Fire Monitor	Model	PL48
	Pressure	1.0Mpa
	Working Range	≥65m
	Rotation Angle	360°
Other	Truck body with aluminum alloy rolling door； PTO control indicator installed in cab, also with 100W siren, LED alarm lamp, sign light, lighting switch, rear lighting and etc.

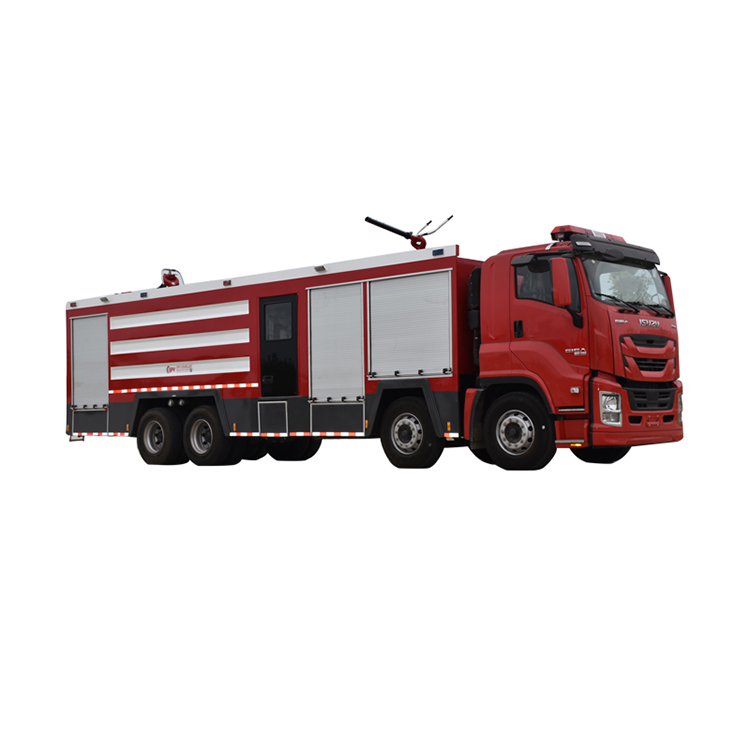

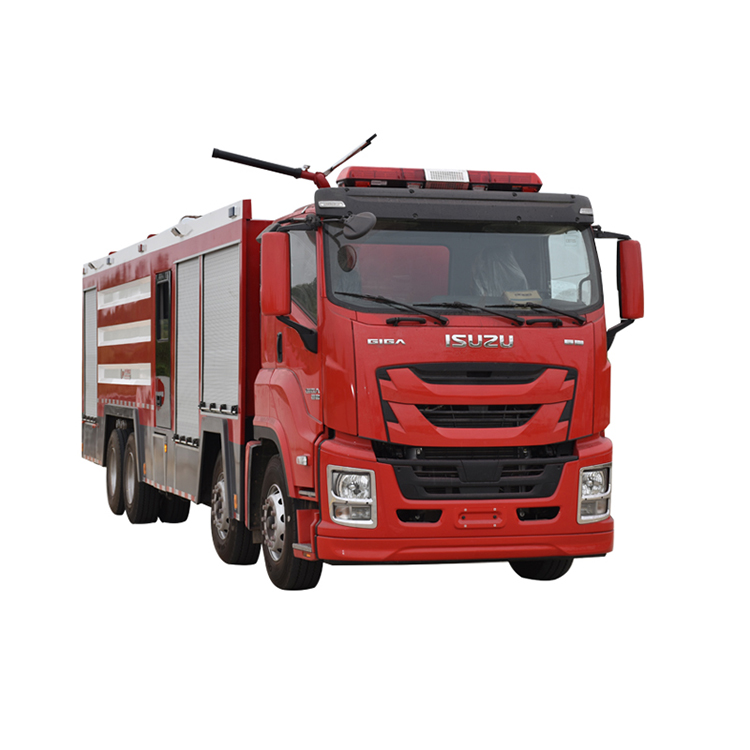

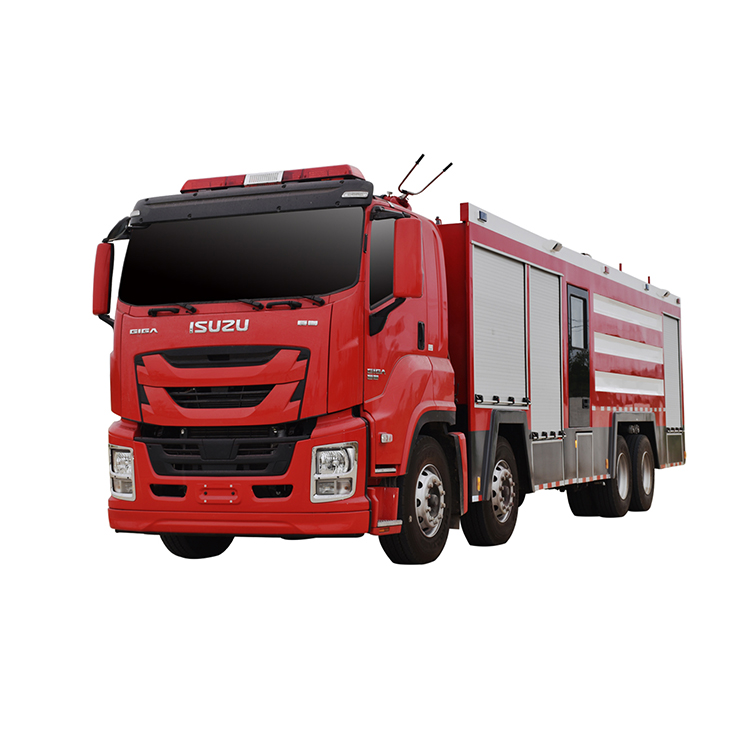

Photos View:
