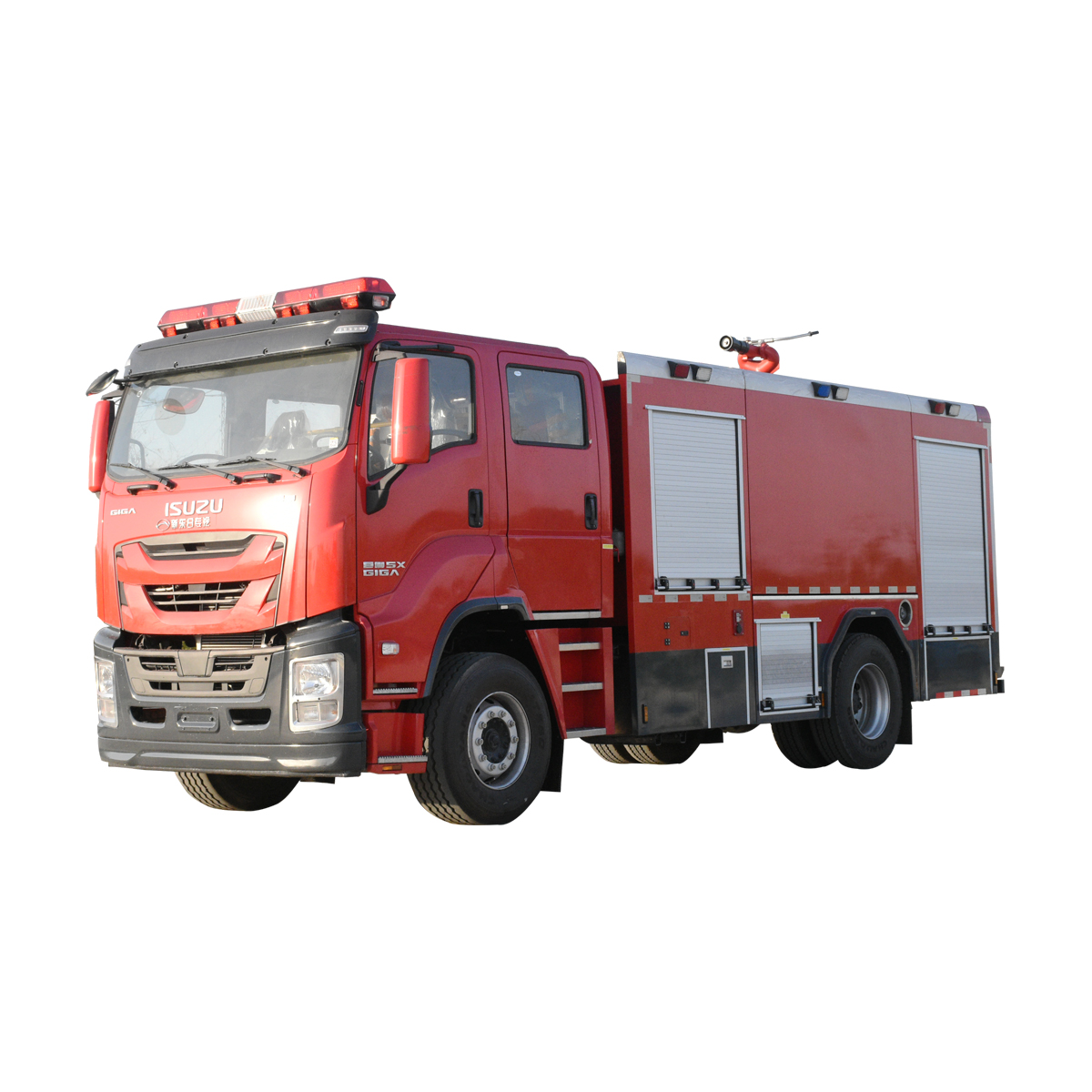

ISUZU GIGA 6000L water foam fire truck

Fire Truck, also known as a fire engine or Tanker Truck, is a specialized vehicle used by firefighters to combat fires. Here are some key features and components of a typical fire truck:

1. Water tank: Most fire trucks have an onboard water reservoir.

2. Pump system: To pump water from the tank or external sources to hoses and nozzles.

3. Ladder: Extendable ladder for accessing upper levels of buildings.

4. Hose compartments: Storage areas for various firefighting hoses.

5. Tools: Including axes, Halligan bars, and other rescue equipment.

6. Light systems: Powerful floodlights for illuminating dark scenes.

7. Sirens and alarms: For alerting other road users.

8. Crew seating: Space for multiple firefighters.

9. Additional equipment: Such as first aid supplies, breathing apparatus, and cutting tools.

Fire trucks come in different types, including:
- Pumper trucks
- Tanker trucks
- Aerial ladder platforms
- Rescue trucks
- Foam units

These vehicles are essential for rapid response to fire emergencies and often serve additional purposes like rescue operations and hazmat incidents.



Specification:

Vehicle Description
Overall Size	8250*2550*3550mm
GVW	18000kgs
Curb Weight	11500kgs
Chassis Brand	ISUZU
Drive Type	4X2 with LHD
Chassis Description
Cab	Crew cab,2+3 seats,with A/C
Wheelbase	4500mm
Tire	295/80R22.5, 6+1pcs
Engine	Engine Model	6HK1-TCG61
	Emmission	Euro VI
	Displacement	7.79L
	Horse Power	240hp
Gear box	Manual, 6 forwards +1 reverse
Upper Body
Water Tank	6000L with Carbon steel
Fire Pump	Model	CB10/40
	Flow Rate	40L/S
	Pressure	1.0Mpa
	Suction Depth	7m
Fire Monitor	Model	PS40
	Pressure	1.0Mpa
	Working Range	≥60m
	Rotation Angle	360°
Other	Truck body with aluminum alloy rolling door； PTO control indicator installed in cab, also with 100W siren, LED alarm lamp, sign light, lighting switch, rear lighting and etc.

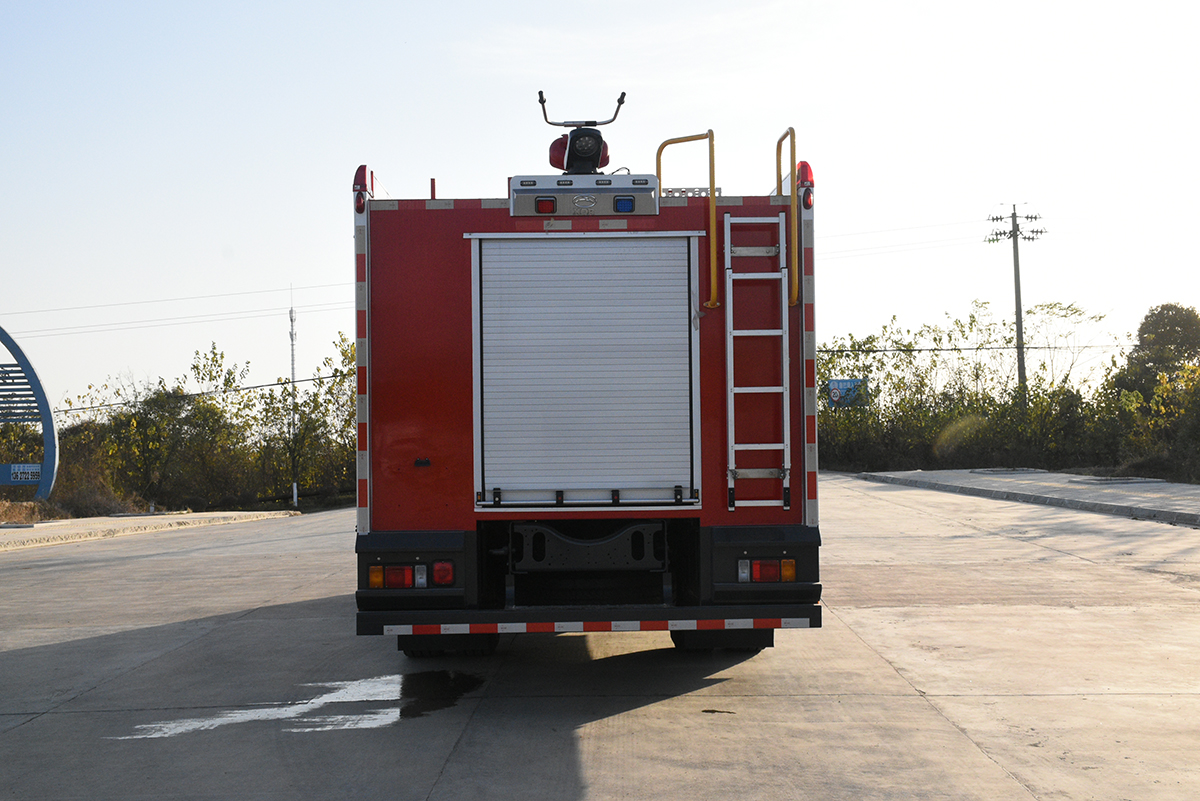

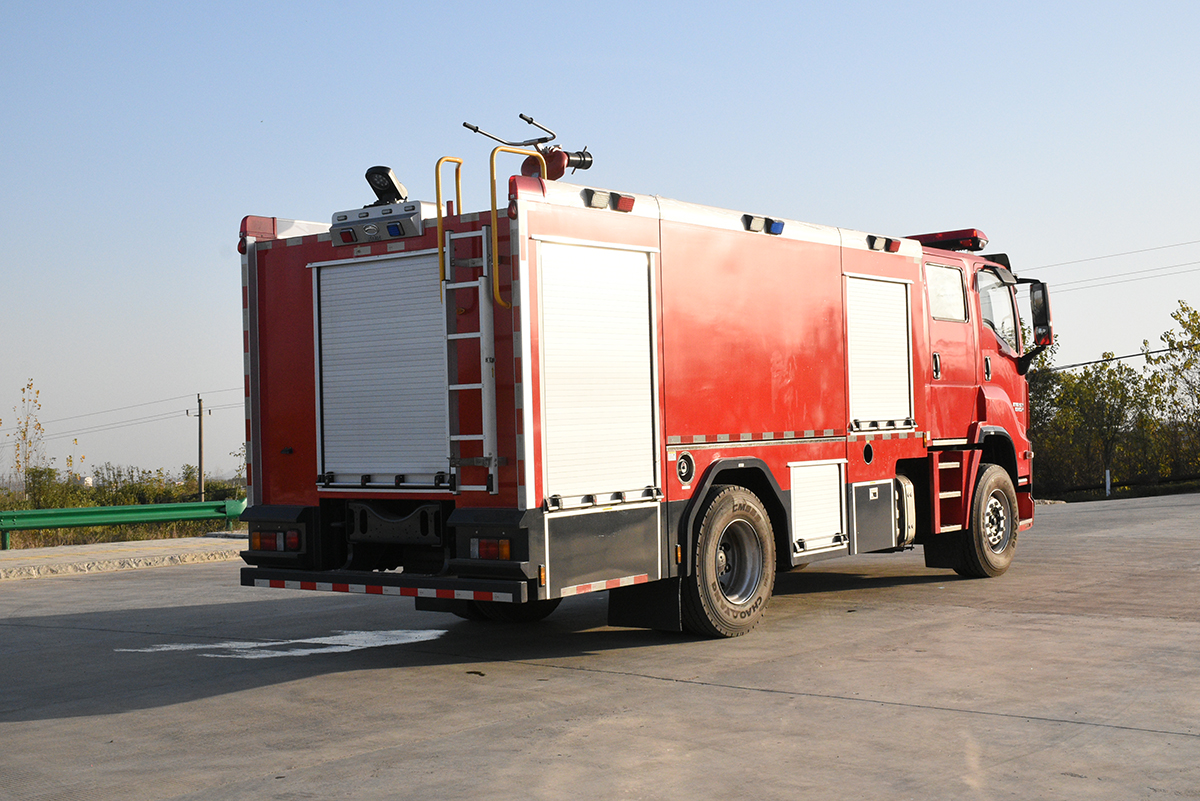

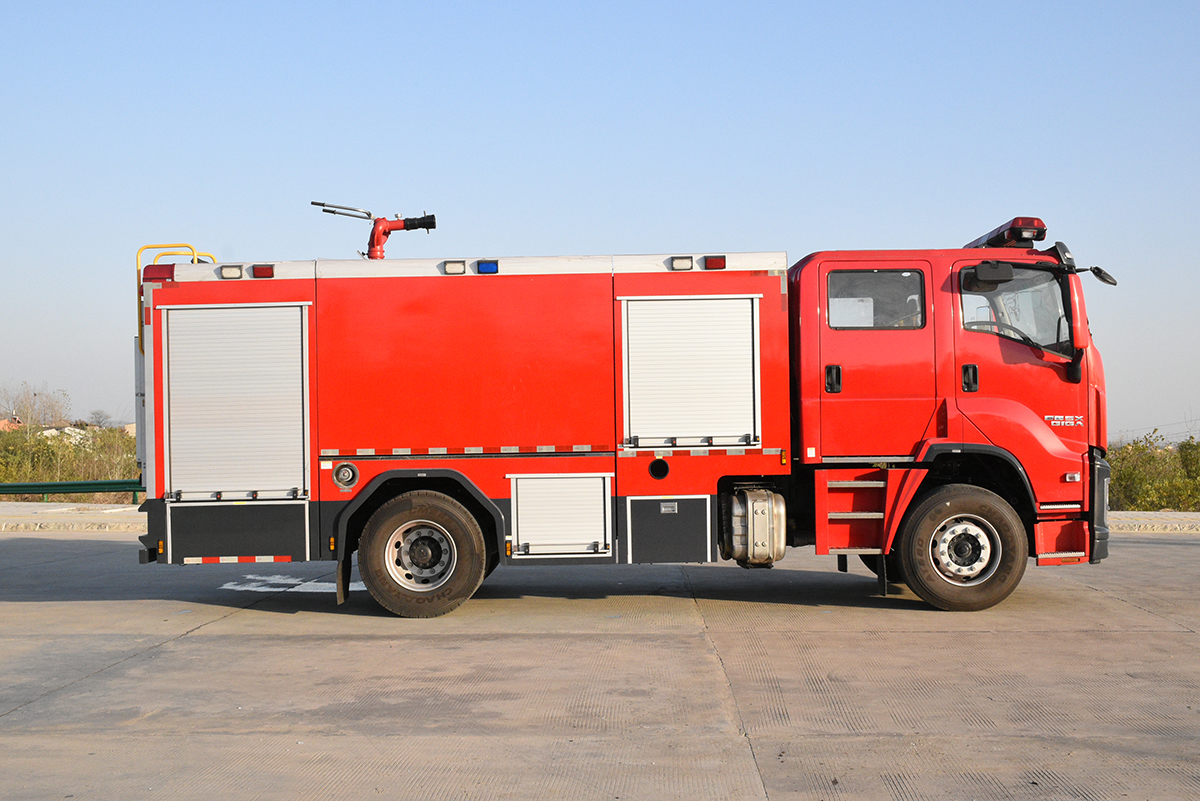

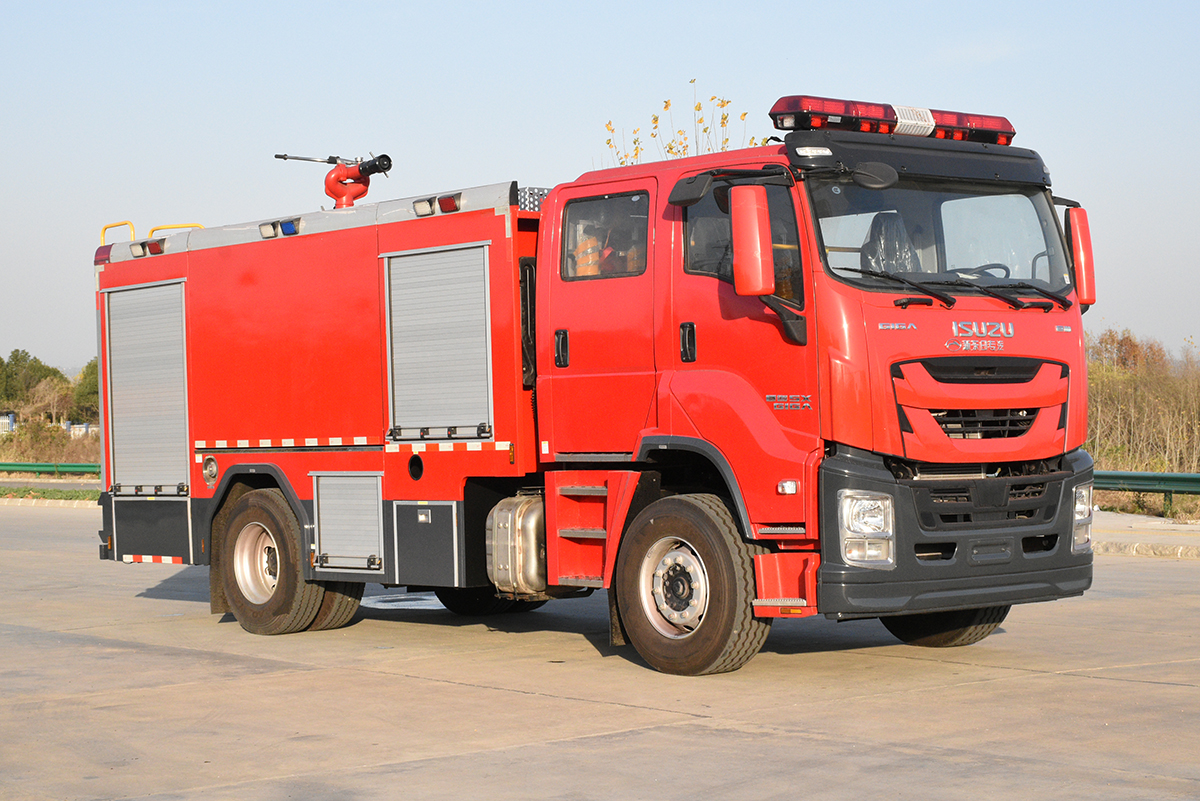

Photos View:
