Home > Products > Sanitation Truck > Sewage Suction Truck > Dongfeng 20,000 liters Sewage Suction Vacuum Pump Truck

Dongfeng 20,000 liters Sewage Suction Vacuum Pump Truck

Basic Info

Model No.: YZR5250GXWD6

Brand: XDR

Gearbox Type: Manual

Old And New: New

Emission Standards: Euro 3

Fuel: Diesel

Place Of Origin: China

Product Name: Dongfeng 6*4 Heavy Duty 20,000 liters Sewage Suction Vacuum Pump Truck for sale

Overall Dimension(mm): 9100×2500×3750

Engine Model: ISLe375 30 Cummins

Wheelbase(mm): 4350+1350

Tyre Specification: 295/80R22.5

Tank Volume: 20000liters

Tank Material: Carbon steel

Tank Thickness: 8mm

Vacuum Pump: XD-420(double )

Suction Pipe: 8m

Additional Info

Packaging: NAKED WITH WAXING

Productivity: 1000 UNITS/PER YEAR

Transportation: Ocean,Land

Place of Origin: CHINA

Supply Ability: 1000UNITS/PER YEAR

Certificate: ISO9001

HS Code: 8705909990

Port: SHANGHAI,TIANJIN,QINGDAO

Product Description

1.Dongfeng  Vacuum Sewage Suction Description
A vacuum Sewage Suction Truck is a specialized vehicle designed for the extraction,transportation, and disposal of liquid and semi-liquid waste. These trucks are commonly used for cleaning septic tanks,sewers,and industrial waste systems, as well as for environmental cleanup tasks. The vacuum sewage suction truck is essential tools for waste management,providing a reliable and environmentally responsible solution for maintaining sanitation and handling liquid waste efficiently.

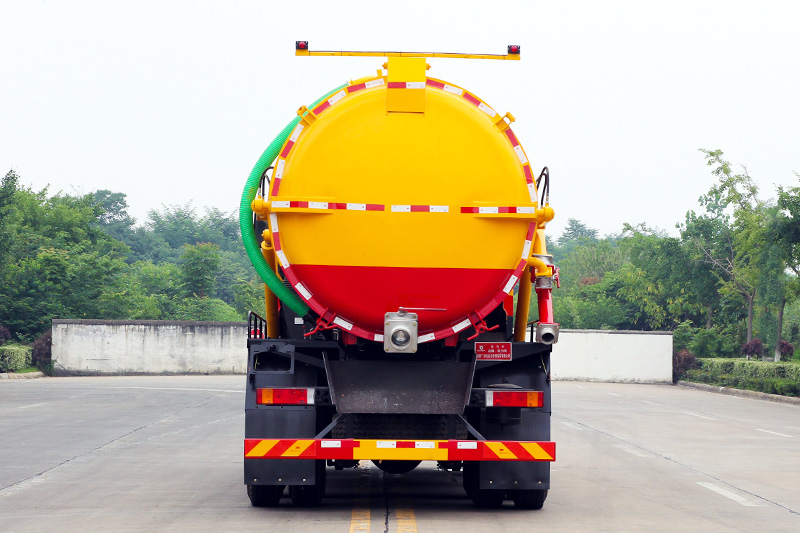

dongfeng sewage truck16cbm (11)

Vehicle Model  YZR5250GXWD6
Vehicle Brand  XDR
Chassis Brand  DONGFENG
Overall Dimension(mm) 9100*2500*3750
GVW/Curb/Rated Loading weight(kg) 25000/13100/11770
Cab seat 2,3
Air conditioner YES
Fuel type Diesel
Engine model Isle375 30
Engine brand Cummins
Power(kw/hp) 275/375
Displacement(cc) 8900
Emission standard Euro 3
Drive type  4*2
Transmission  12 speed,manual
Wheelbase(mm) 4350+1350
Tyre Specification 295/80R22.5
Tyre No.(pcs) 10+1
Max.Speed(km/h) 89
Paint Blue and White
Tank Volume 18000liters
Tank material  Carbon steel
Vacuum pump  XD-240
Suction Pipe  8m

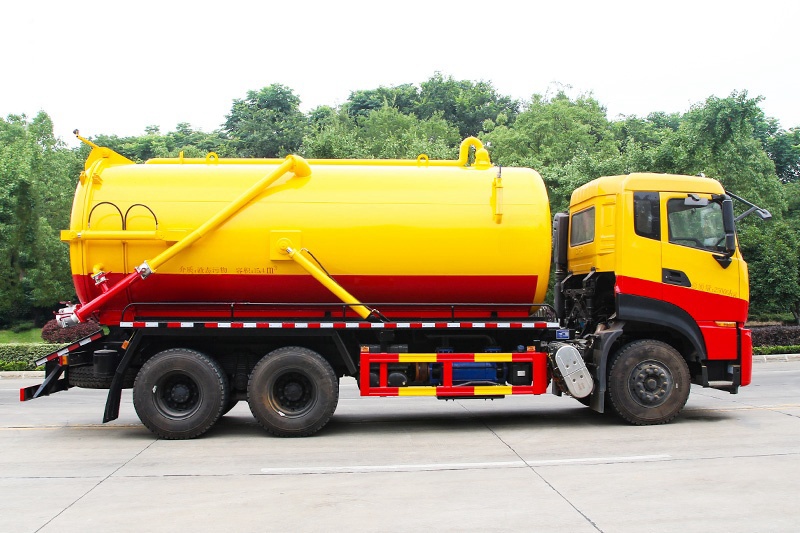

dongfeng sewage truck16cbm (13)

Features of a Vacuum Sewage Suction Truck
1. Vacuum system
Powered by a high-capacity vacuum pump,which creates suction to extract waste materials.
Capable of handling both liquid and sludge waste with varying levels of viscosity.
2. Waste Tank
A large sealed tank designed to store extracted waste during transportaion.
Constructed from corrosion-resistant materials such as stainless steel or high grade carbon steel.
3. Suction Hose
A flexible,heavy-duty hose used to access and extract waste from septic tanks,sewer lines,or industrial pits.
Can be extended or retracted as needed for hard-to reach areas.
4. Discharge system
Features a hydraulic or phenumatic mechanismfor controlled emptying of the waste tank at disposal sites.
Some models allow for pressurized discharge to clear blockages in sewer lines.
5. Power system
Operated using a PTO (power take-off) system from the truck;s engine or a dedicated auxiliary engine.
Provides power for the vacuum pump,hydraulic systems,and other functions.
6. Safety features
 Overfill protection to prevent spillage.
Emergency shutoff systems for safe operation.
Sealed tanks and hoses to control odors and prevent leaks.
7. Driver's cabin
Ergonomically designed with controls for operating the vacuum pump,suction hose and other systems.
Modern models may includ monitoring displays,GPS,and cameras for precision and ease of use.

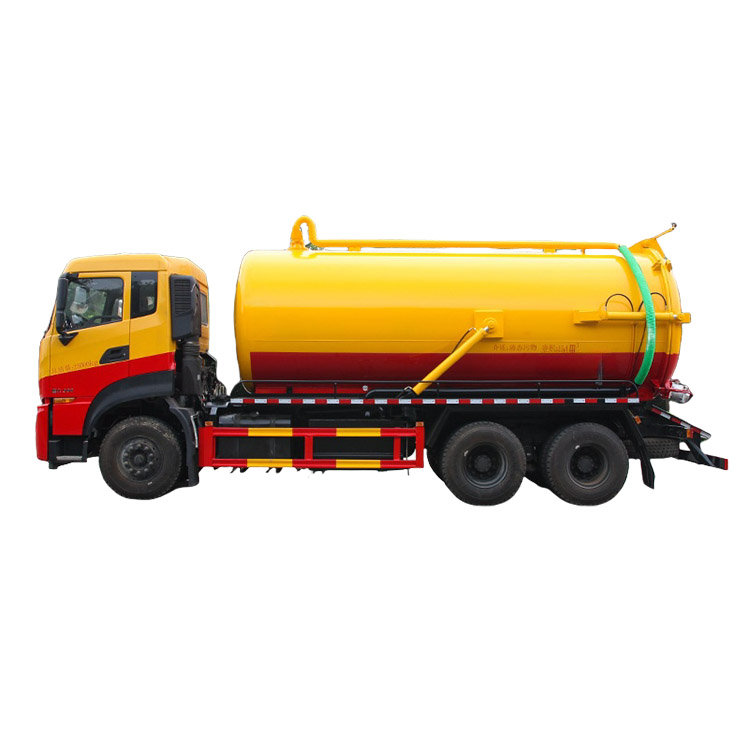

dongfeng sewage truck16cbm (14)
Types of Vacuum sewage suction trucks
1. Standard suction trucks:Designed for general-purpose waste extraction and transportation.
2. High-pressure jetting trucks: Combine vacuum suction with high-pressure water jets for cleaning sewer lines and removing blockages.
3.Combination trucks: Equipped with both vacuum and jetting systems for versatile cleaning and waste extraction tasks.

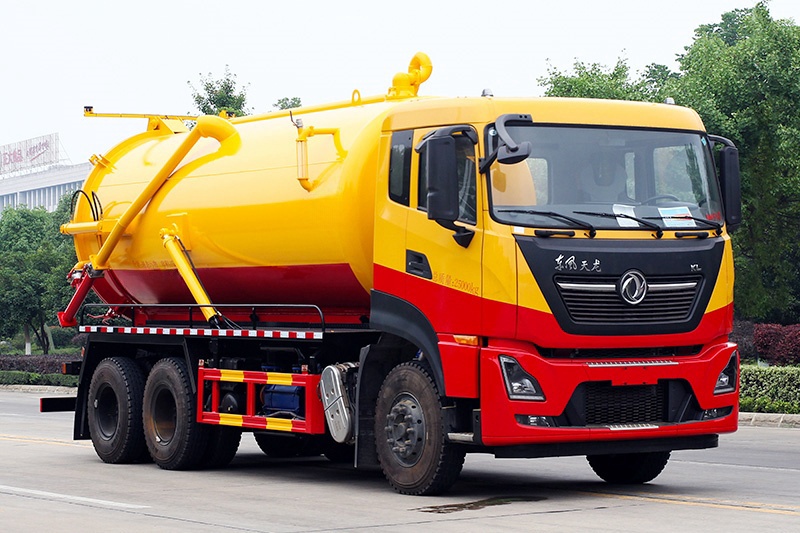

dongfeng sewage truck16cbm (1)
Applications
1. Septic tank cleaning: Extracting sludge and waste from residential and commercial septic systems.
2. Sewer maintenance: Cleaning blockages and cleaning municipal sewer lines.
3. Industrial waste management: Handling waste from factories, refineries and processing plants.
4. Environmental cleanup: Removing liquid waste or hazardous materials during environmental restoration projects.

dongfeng sewage truck16cbm (10)
Benefits
1.Efficiency: High suction power enables quick and effective waste removal.
2. Versatility: Suitabe for various waste types,including liquid,sludge,and semi-solid materials.
3.Hygiene and safety: Sealed systems prevent exposure to harmful waste and control odors.
4.Environmental compliance: Designed to safely transport waste to authorized disposal or treatment facilities.
dongfeng sewage truck16cbm (12)
_20250106162158(1)
