Home > Products > Sanitation Truck > Sewage Suction Truck > Dongfeng 12000liters High Pressure Sewer Suction Vehicle

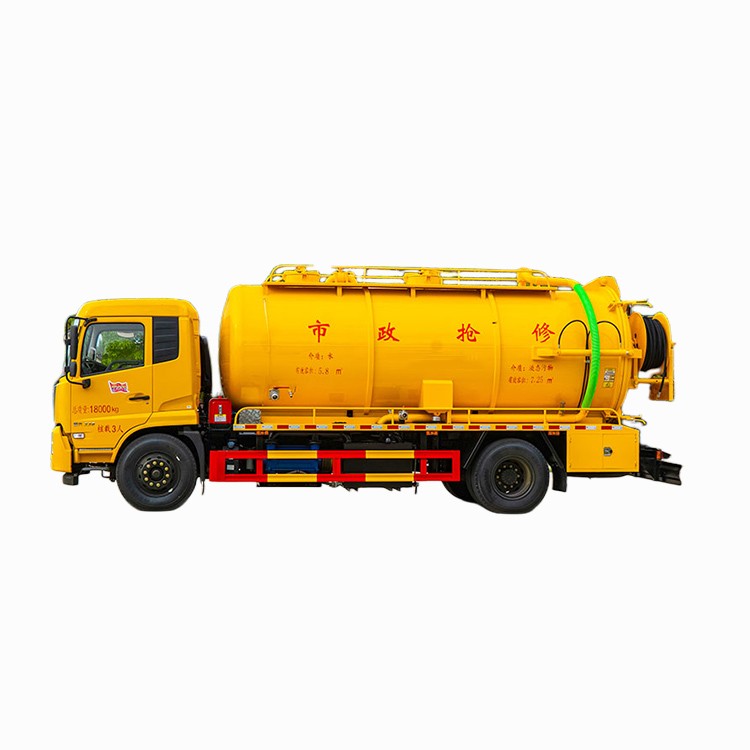

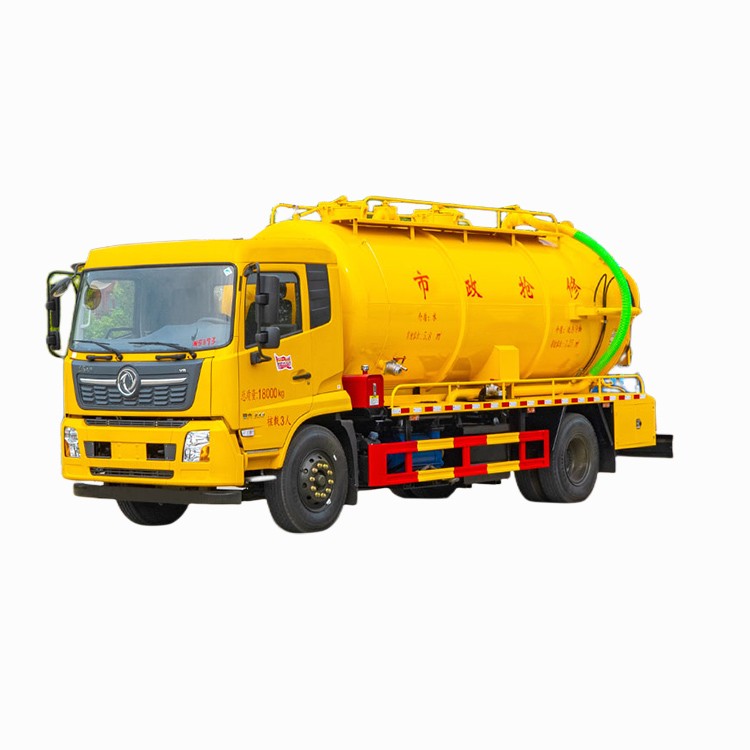

Dongfeng 12000liters High Pressure Sewer Suction Vehicle

Basic Info

Model No.: YZR5181GQWD6

Brand: XDR

Gearbox Type: Manual

Old And New: New

Emission Standards: Euro 3, Euro 5

Fuel: Diesel

Place Of Origin: China

Tank Material: Carbon steel

Product Name: Dongfeng 12000liters High Pressure Sewer Suction Vehicle Price

Overall Dimension(mm): 9150×2550×3550

Engine Model: D6.7NS6B230

Emission Standard: Euro6

Wheelbase(mm): 4700

Tyre Specification: 10.00R20 18PR

Water Tank Volume: 5000liters

Sewage Tank Volume: 7000liters

High Pressure Pump: 24Mpa

Additional Info

Packaging: NAKED WITH WAX

Productivity: 1000SETS/PER MONTH

Transportation: Ocean,Land

Place of Origin: CHINA

Supply Ability: 1000SETS/PER YEAR

Certificate: ISO9001

HS Code: 8705909990

Port: SHANGHAI,TIANJIN,GUANGZHOU

Product Description

1.Dongfeng  Vacuum Sewage Suction Description
A vacuum Sewage Suction Truck is a specialized vehicle designed for the extraction,transportation, and disposal of liquid and semi-liquid waste. These trucks are commonly used for cleaning septic tanks,sewers,and industrial waste systems, as well as for environmental cleanup tasks. The vacuum sewage suction truck is essential tools for waste management,providing a reliable and environmentally responsible solution for maintaining sanitation and handling liquid waste efficiently.

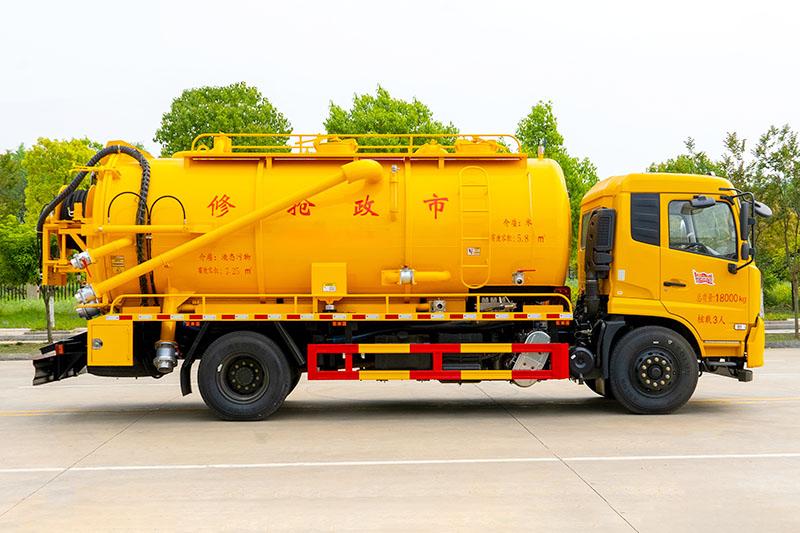

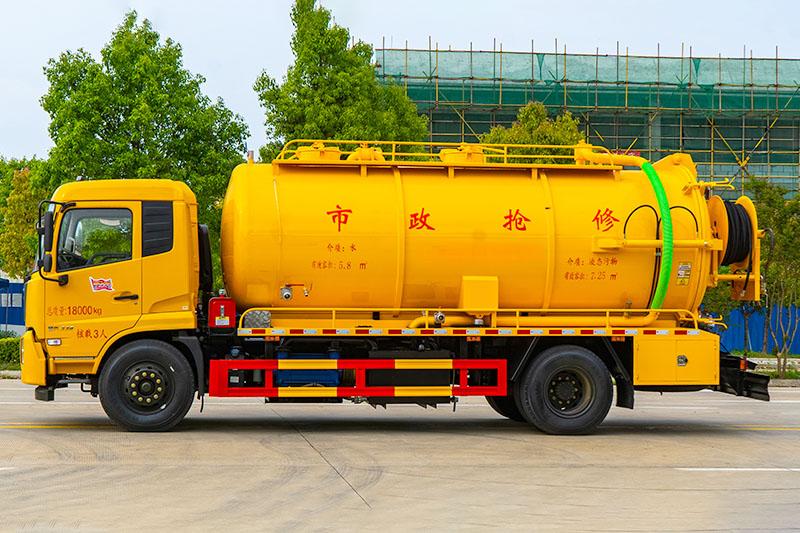

DF-12sewage truck (14)

Vehicle Model  YZR5181GQWD6
Vehicle Brand  XDR
Chassis Brand  DONGFENG
Overall Dimension(mm) 9150*2550*3550
GVW/Curb/Rated Loading weight(kg) 18000/11980/5890
Cab seat 2,3
Air conditioner YES
Fuel type Diesel
Engine model D6.7NS6B230
Engine brand DONGFENG CUMMINS
Power(kw/hp) 169/230
Displacement(cc) 6700
Emission standard Euro 6
Drive type  4*2
Transmission  6 speed,manual
Wheelbase(mm) 4700
Tyre Specification 10.00R20
Tyre No.(pcs) 6+1
Max.Speed(km/h) 98
Paint Blue and White
Water Tank Volume 5000liters
Sewage Tank Volume 7000liters
High Pressure Pump 24Mpa
Suction Pipe  8m

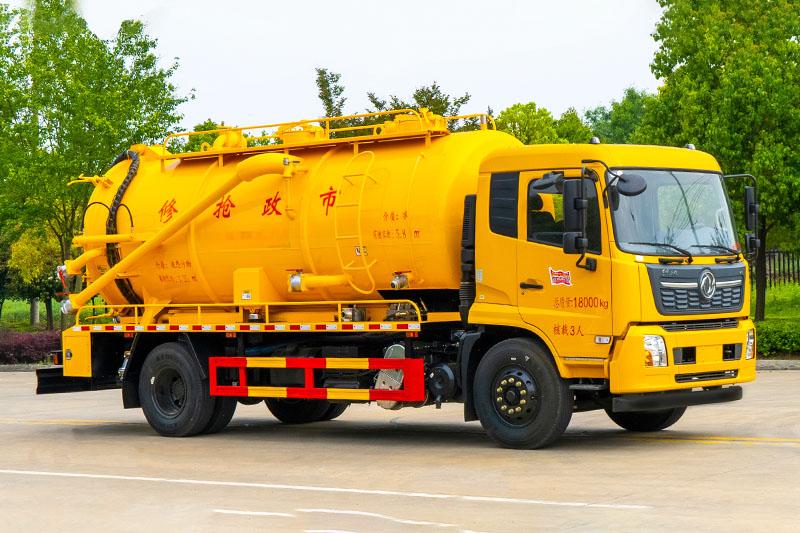

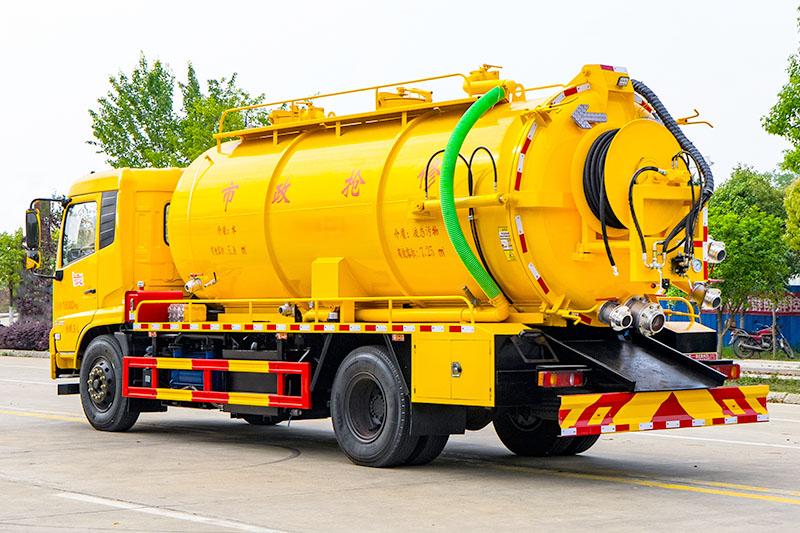

DF-12sewage truck (13)

Features of a Vacuum Sewage Suction Truck
1. Vacuum system
Powered by a high-capacity vacuum pump,which creates suction to extract waste materials.
Capable of handling both liquid and sludge waste with varying levels of viscosity.
2. Waste Tank
A large sealed tank designed to store extracted waste during transportaion.
Constructed from corrosion-resistant materials such as stainless steel or high grade carbon steel.
3. Suction Hose
A flexible,heavy-duty hose used to access and extract waste from septic tanks,sewer lines,or industrial pits.
Can be extended or retracted as needed for hard-to reach areas.
4. Discharge system
Features a hydraulic or phenumatic mechanismfor controlled emptying of the waste tank at disposal sites.
Some models allow for pressurized discharge to clear blockages in sewer lines.
5. Power system
Operated using a PTO (power take-off) system from the truck;s engine or a dedicated auxiliary engine.
Provides power for the vacuum pump,hydraulic systems,and other functions.
6. Safety features
 Overfill protection to prevent spillage.
Emergency shutoff systems for safe operation.
Sealed tanks and hoses to control odors and prevent leaks.
7. Driver's cabin
Ergonomically designed with controls for operating the vacuum pump,suction hose and other systems.
Modern models may includ monitoring displays,GPS,and cameras for precision and ease of use.

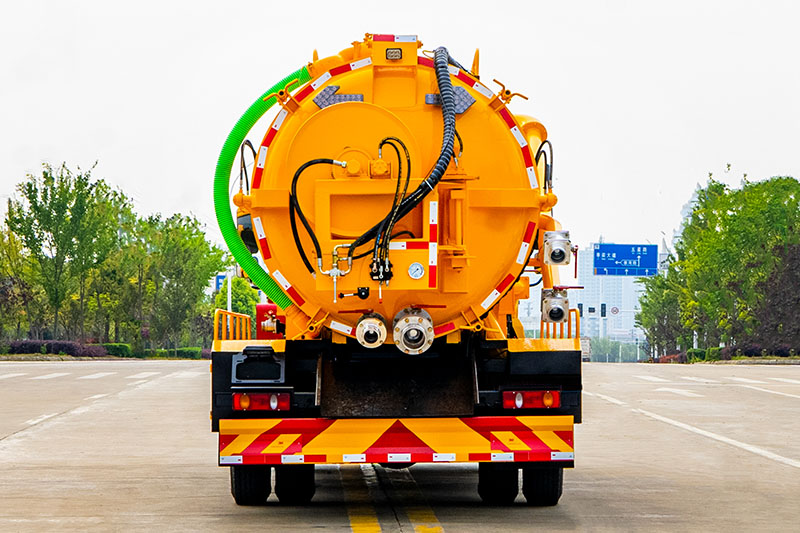

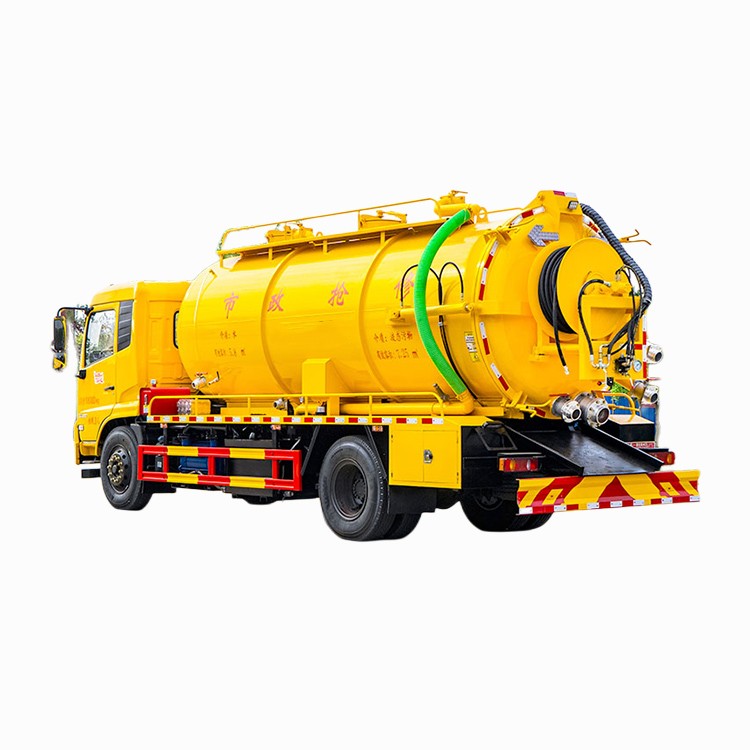

DF-12sewage truck (12)
Types of Vacuum sewage suction trucks
1. Standard suction trucks:Designed for general-purpose waste extraction and transportation.
2. High-pressure jetting trucks: Combine vacuum suction with high-pressure water jets for cleaning sewer lines and removing blockages.
3.Combination trucks: Equipped with both vacuum and jetting systems for versatile cleaning and waste extraction tasks.

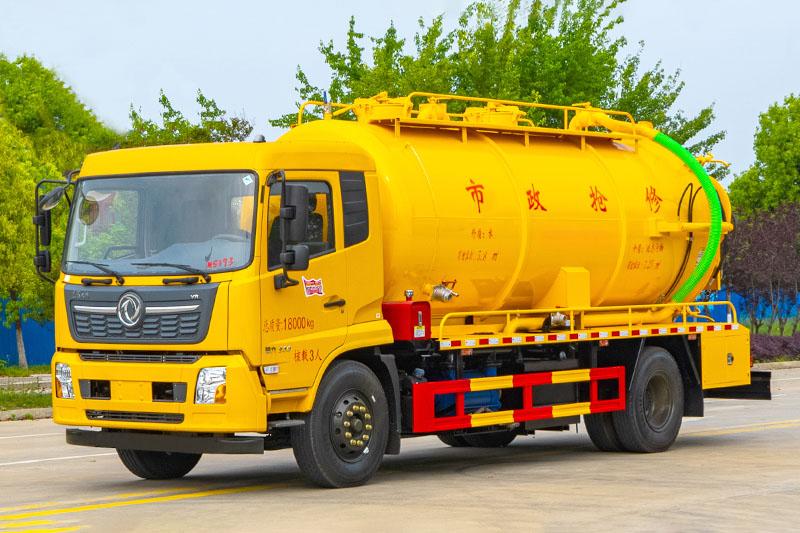

DF-12sewage truck (11)
Applications
1. Septic tank cleaning: Extracting sludge and waste from residential and commercial septic systems.
2. Sewer maintenance: Cleaning blockages and cleaning municipal sewer lines.
3. Industrial waste management: Handling waste from factories, refineries and processing plants.
4. Environmental cleanup: Removing liquid waste or hazardous materials during environmental restoration projects.

DF-12sewage truck (9)
Benefits
1.Efficiency: High suction power enables quick and effective waste removal.
2. Versatility: Suitabe for various waste types,including liquid,sludge,and semi-solid materials.
3.Hygiene and safety: Sealed systems prevent exposure to harmful waste and control odors.
4.Environmental compliance: Designed to safely transport waste to authorized disposal or treatment facilities.
DF-12sewage truck (15)
Company Introduction

Company Profile
Factory show
Factory View
Certification
Certification
Exhibition
Exhibition & Customer Visit
Export cases
Project Case
Packing and shipment
Packing



Product Categories : Sanitation Truck > Sewage Suction Truck

Product Images

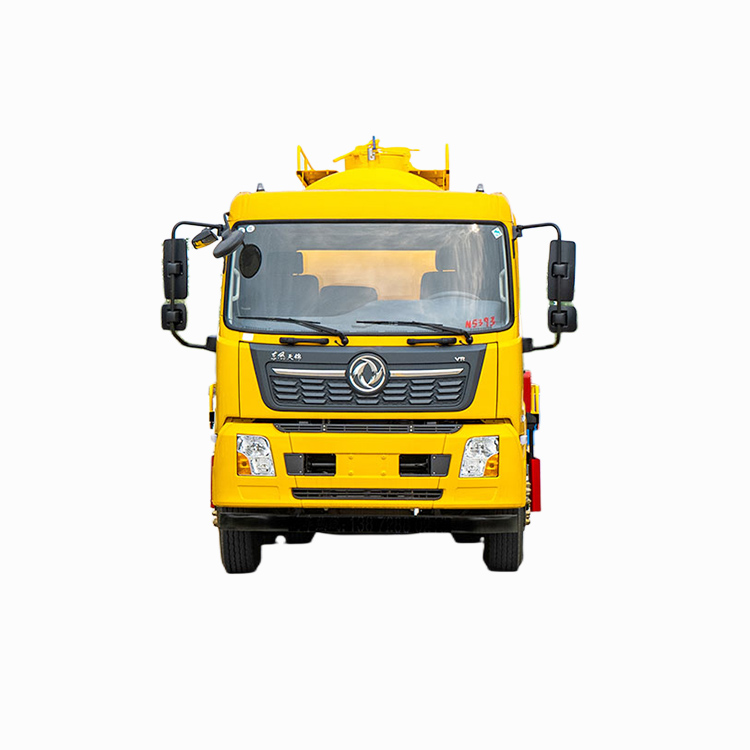

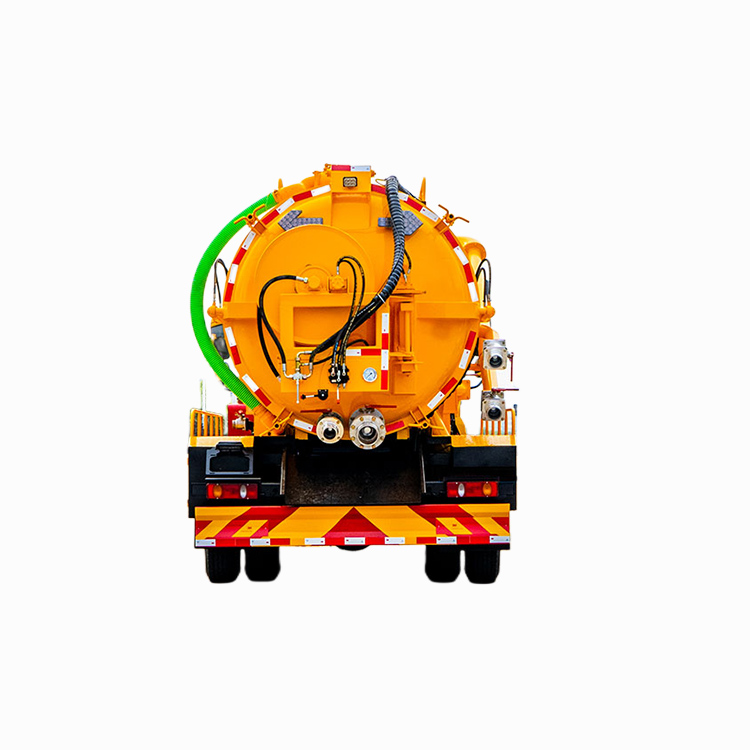

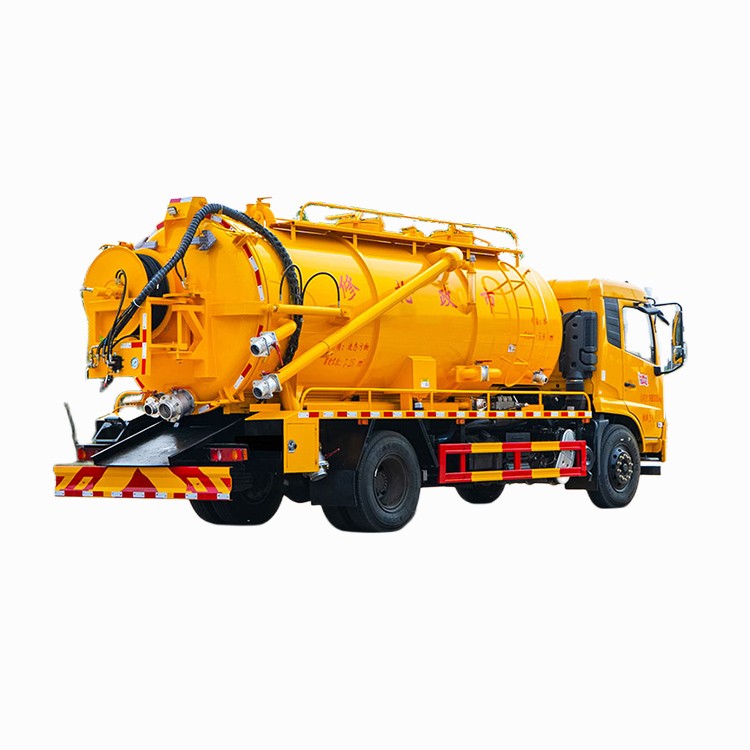

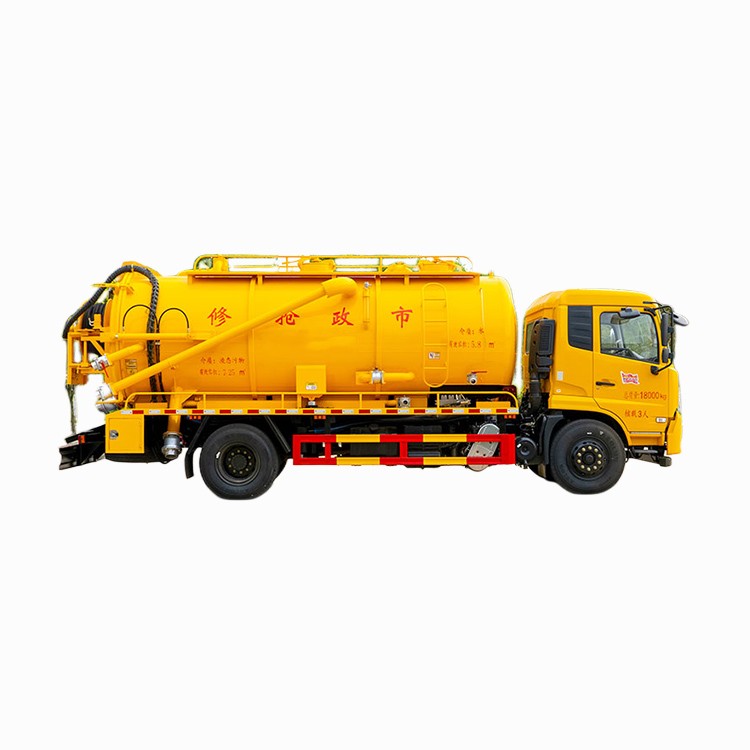

  • Dongfeng 12000liters High Pressure Sewer Suction Vehicle
