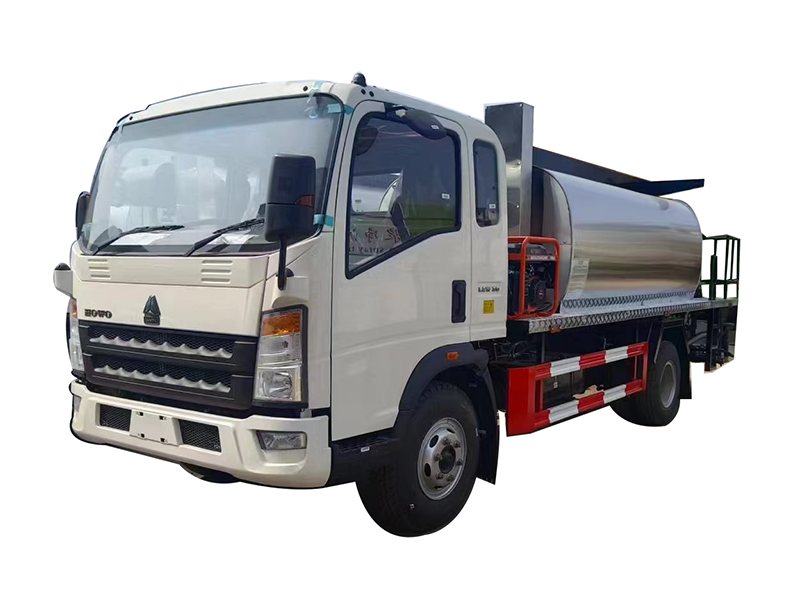

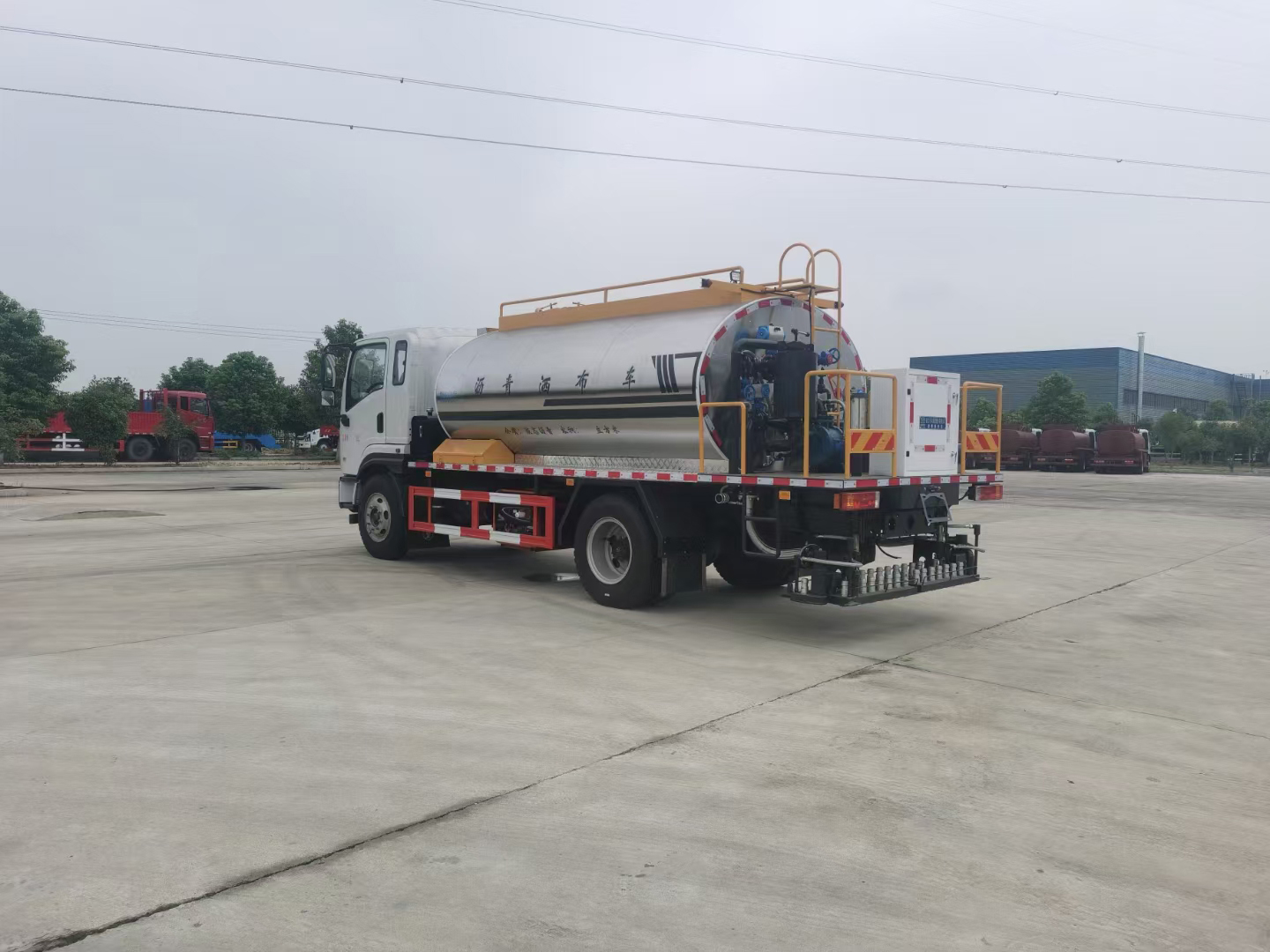

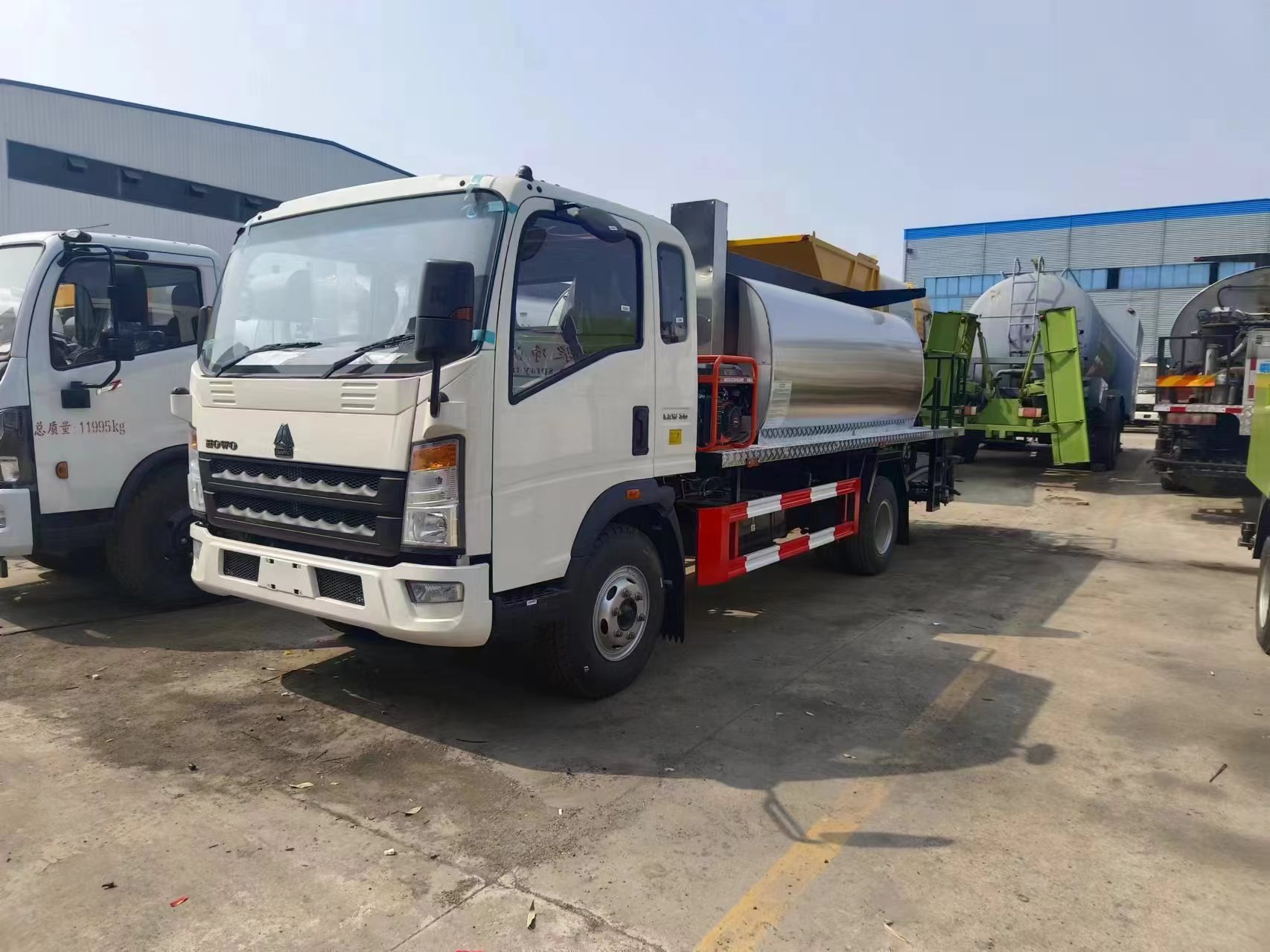

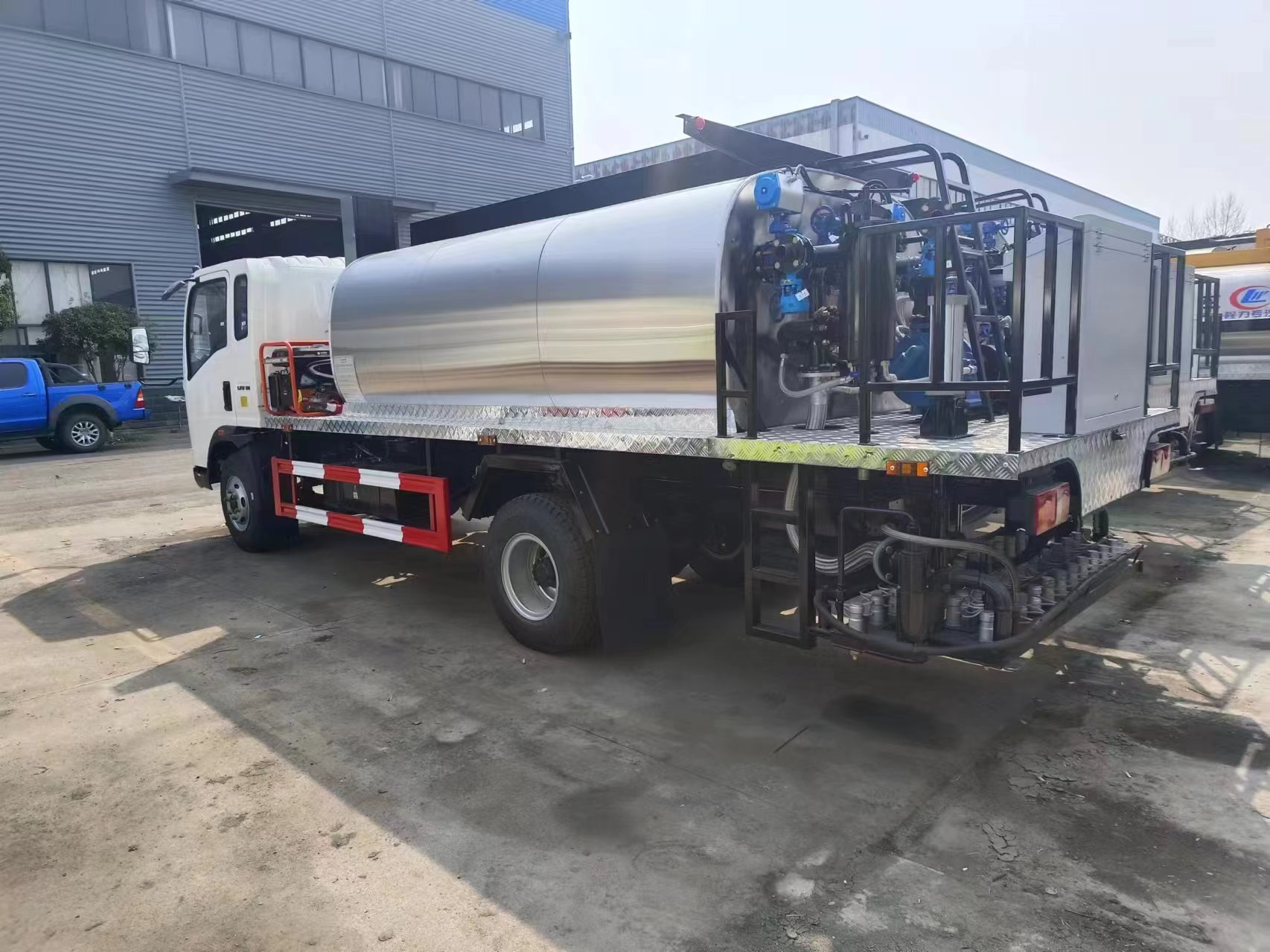

HOWO light duty road construction Asphalt Distributor Truck

Basic Info

Model No.: YZR5160GLQZZ3

Brand: HOWO

Old And New: New

Gearbox Type: Manual

Emission Standards: Euro 2, Euro 3

Fuel: Diesel

Place Of Origin: China

Road Engineering Truck: road maintance truck

Additional Info

Packaging: bulk

Productivity: 1000 sets/months

Transportation: Ocean,Land,Air

Place of Origin: HUBEI,CHINA

Supply Ability: 1000 sets/months

Certificate: ISO,CCC

Port: Shanghai,Tianjing,Qingdao

Product Description

The HOWO Light Duty 10cbm asphalt distributor truck is a specialized piece of equipment used in road construction and maintenance. Here are some key features and information about this type of vehicle:
1. Purpose: It's designed for precise application of asphalt and other bituminous materials on roads.
2. Capacity: The 10cbm (cubic meter) capacity refers to the volume of asphalt or other materials it can hold.
3. Light-duty classification: While still a truck, it's built for lighter loads compared to heavy-duty asphalt distributors.
4. Spraying system: Equipped with a high-pressure spraying system for uniform distribution of asphalt.
5. Control systems: Advanced controls for adjusting spray rates and patterns.
6. Heating system: Typically includes a heating system to keep the asphalt at the correct temperature during application.

HOWO Semi-intelligent 10CBM Asphalt Distributor Truck
Payment Term	30% T/T in advance,70% before shipment
Truck Condition	New
Production capacity	1000 sets/month
Warranty	12 months
Port of Delivering	Shanghai,Tianjing,Lianyungang,Qingdao,Guangzhou,China any port
Overall Dimension	7,800x2,500x3,150 mm
Cabin	HOWO white cabin with AC
G.V.W/Curb weight	16,000/8,400 KGS
Max speed	95 km/h
Wheelbase	4,700 mm
Engine Model	MC05.18-30/180hp/132KW/4,580 ml
Engine type	6 cylinder,water cooling,inter cooling
Fuel	Diesel Euro 3
Transmission	HW90510C/Manual 10+2 gears
Brake	Air brake
Steering	Power assisted
Tire	255/70R22.5, 6+1 pcs
Tank Capacity	10 cbm
Tank Material	Q245 carbon steel/5mm
Spraying medium	emulsified asphalt, hot asphalt, modified asphalt, modified emulsified asphalt
Asphalt Pump	With High viscosity asphalt insulation pump with hydraulic motor
Hydraulic pump	F563 Aluminum alloy gear pump
Hydraulic system	USA brand proportional flow control valve YZR-2MDKZ100A.00
Burner	Riyalu G20 imported from Italy
Heating method	The tank and pipeline are heated with thermal oil throughout the entire process
Temperature control	Temperature controller
Spraying width	1.2-4.5 M, three overlapping spraying, spraying 0.2-2kg/m ², 28 sets of stainless steel fully electronic control cylinders and pure copper nozzles,manual knob controls the spraying amount
Generator	Gasoline 5500w
Radiator	With radiator
level gauge	Install a floating ball level gauge inside the tank
Metal thermometer	Metal thermometer installed on the exterior of the tank
Remarks	Equipped with circulation and pump in/pump out functions, compressed air cleaning function for asphalt pipelines, and diesel cleaning function
On-board accessories:	English version vehicle instructions, maintenance manual,operation video
